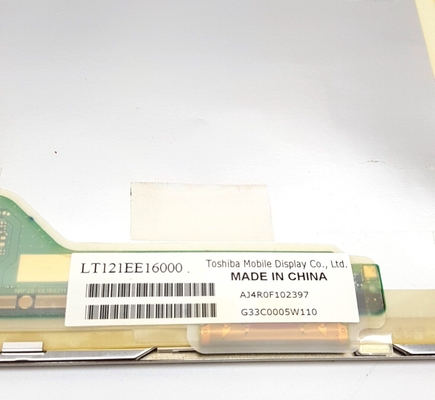

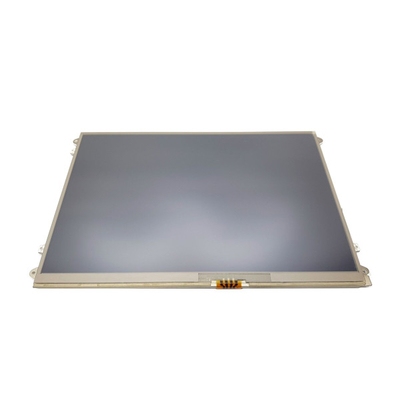

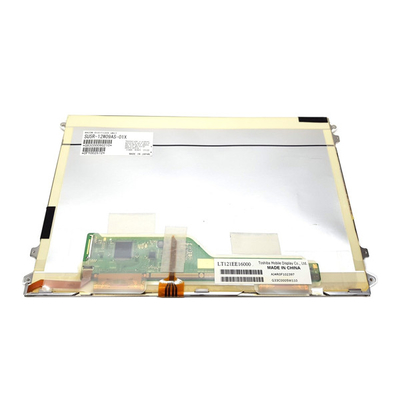

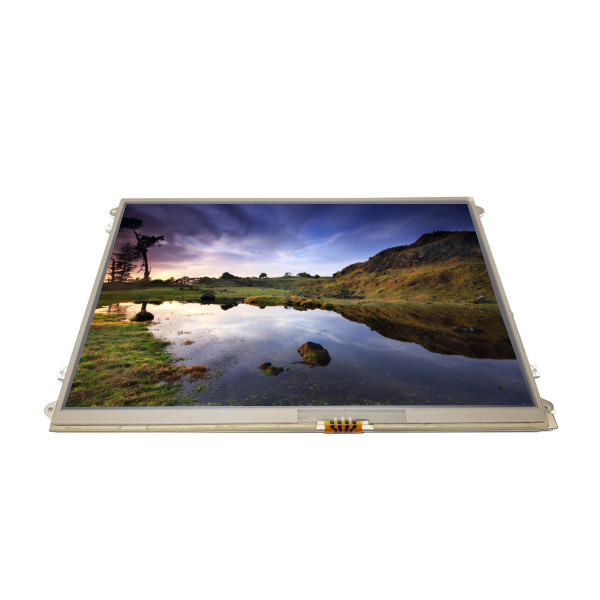

LT121EE16000 12.1 inch 1280*800 LVDS LCD Screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LT121EE16000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LT121EE16000 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 261.12(W)×163.2(H) Mm | Support Color: | 262K |
| Contrast Ratio: | 800 : 1 (Typ.) (TM) | Operating Mode: | TN, Normally White, Transmissive |
| Designed For: | Laptop | ||
Product Description
LT121EE16000 12.1 inch 1280*800 LVDS LCD Screen panel
LT121EE16000 LCD Panel Product details :
| Brand | Toshiba Mobile Display |
| Model P/N | LT121EE16000 |
| Diagonal Size | 12.1" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | - |
| Outline Size | 288.8(W)×182(H)×6.6(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 40 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 6 stringsWLED, No Driver |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Voltage Supply | 2.5V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LT121EE16000 12.1 inch 1280*800 LVDS LCD Screen panel | |
Important Note Regarding LT121EE16000 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
LT121EE16000 LCD Panel Shipping and Package :
Shipping Details for LT121EE16000 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
LT121EE16000 LCD Panel FAQ :
Q: Do you accept sample orders of LT121EE16000 ?
A: Of course!sample order is welcome !
Q: If I place order now,when will you ship the goods of LT121EE16000 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LT121EE16000 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of LT121EE16000 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
