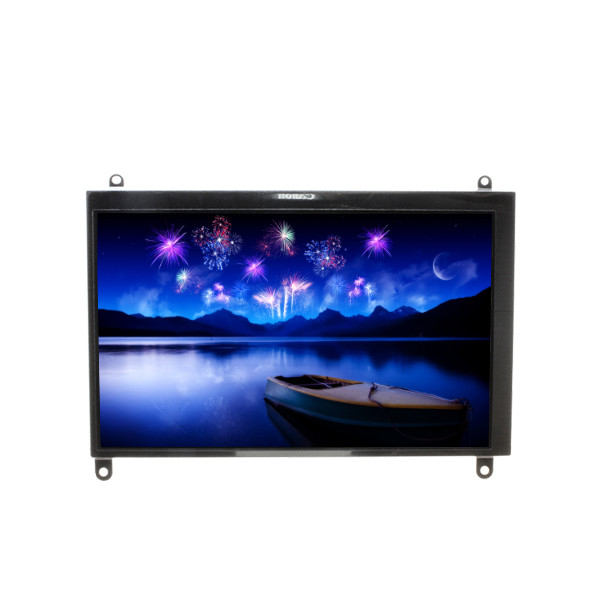

LT056DET2S00 LVDS LCD Screen Display 5.6 inch LCD panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LT056DET2S00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LT056DET2S00 | Diagonal Size: | 5.6" |
---|---|---|---|
Resolution: | 1024(RGB)×600, WSVGA 211PPI | Pixel Format: | RGB Vertical Stripe |
Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
Application: | MID UMPC | Signal Interface: | LVDS (1 Ch, 6-bit), 25 PinsConnector |
Product Description
LT056DET2S00 LVDS LCD Screen Display 5.6 inch LCD panel
LT056DET2S00 LCD Panel Product details :
Brand | Toshiba Mobile Display |
Model P/N | LT056DET2S00 |
Diagonal Size | 5.6" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 211PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 122.88(W)×72(H) mm |
Bezel Opening | - |
Outline Dim. | 136.8(H)×98.5(V)×4.6(D) mm |
Treatment | Glare (Haze 0%) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Typ.) (TM) |
View Direction | - |
Response Time | 50 (Max.)(Tr+Td) |
Viewing Angle | 40/40/20/30 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | WLED |
Weight | 61.0g (Typ.) |
Designed For | MID UMPC |
Interface Type | LVDS (1 ch, 6-bit), 25 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LT056DET2S00 LVDS LCD Screen Display 5.6 inch LCD panel |
LT056DET2S00 LCD Panel Shipping and Package :
LT056DET2S00 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What happen if the lcd panel LT056DET2S00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
