products details

Home > Products >

LCD Screen Display Panel

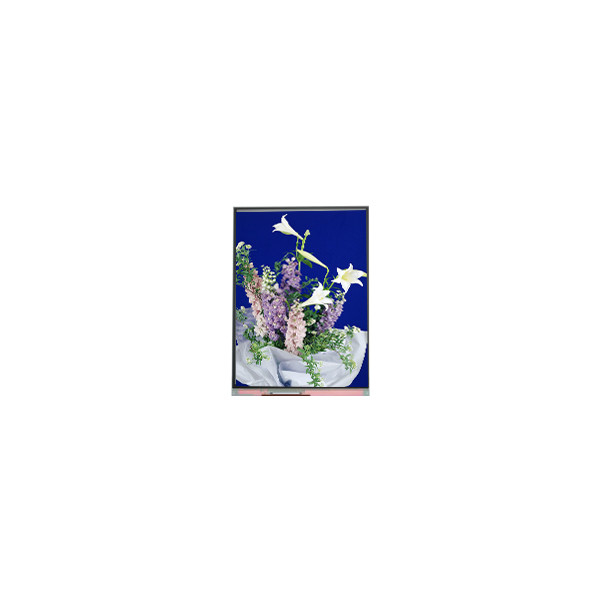

C054SWN1 R0 tft LCD Screen Display 5.4 inch LCD panel

All Category

Floor Standing Digital Signage

C054SWN1 R0 tft LCD Screen Display 5.4 inch LCD panel

Brand Name:	IVO
Model Number:	C054SWN1 R0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C054SWN1 R0

Diagonal Size:

Resolution:

540(RGB)×960, QHD 202PPI

Pixel Format:

RGB Vertical Stripe

Display Colors:

68%NTSC

Contrast Ratio:

No B/L

Application:

Mobile Phone

Environment:

Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

Display Mode:

IPS, Normally Black, Transmissive

Transmissivity:

3.9% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

C054SWN1 R0 tft LCD Screen Display 5.4 inch LCD panel

C054SWN1 R0 LCD Panel Product details :

Brand	IVO
Model P/N	C054SWN1 R0
Diagonal Size	5.4"
Panel Type	a-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell)
Resolution	540(RGB)×960, qHD 202PPI
Pixel Format	RGB Vertical Stripe
Active Area	67.635(W)×120.24(H) mm
Bezel Opening	-
Outline Size	70.535(W)×128.24(H)×0.5(D) mm
Brightness	0 cd/m²
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.25+0.25 mm
Display Colors	68%NTSC
Frequency	60Hz
Weight	17.0g (Typ.)
Surface	Without Polarizer
Contrast Ratio	900:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	50 (Typ.)(Tr+Td)
Transmissivity	3.9% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Mobile Phone
Driver IC	COGSuggest OTM9608A, HX8389
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
TFT LCD Screen C054SWN1 R0 5.4 inch LCD Display

C054SWN1 R0 LCD Screen Payment Terms:

Payment Options: YONGS provides a preferred and secure payment method. We accept payments through YONGS, PayPal, and various other payment terms. Additionally, you have the option to pay via credit card through PayPal for added convenience and security.

Import Duties and Taxes: Please note that products may be subject to import duties, taxes, and other charges. These fees are not included in the product price or shipping charges and are the sole responsibility of the recipient.

Order Cancellation Policy: Orders that remain unpaid beyond 7 business days will be automatically cancelled. We kindly ask our customers to complete their payment within this timeframe to ensure timely processing of their orders.

C054SWN1 R0 LCD Panel Shipping and Package :

C054SWN1 R0 LCD Screen Product Warranty Information:

Thank you for choosing YONGS products. We are committed to providing high-quality LCD screens to our customers. Please review the following warranty information:

Warranty Period: YONGS offers a warranty period of 120 days against any manufacturer defects. These defects include issues such as fuzziness, image problems, V-lines, or H-lines.

Dead Pixel Policy: Our warranty covers LCD screens with 3-5 dead pixels, in accordance with the ISO 13406-2 norm. If you disagree with this norm, we kindly ask you to refrain from purchasing this product.

We stand behind the quality of our products and aim to ensure your satisfaction with your purchase. Should you encounter any issues within the warranty period, please don't hesitate to contact us for assistance.

Thank you for your trust in YONGS products.

C054SWN1 R0 LCD Screen Return Policy:

Thank you for choosing our C054SWN1 R0 LCD screen. We strive to ensure your satisfaction with our products. Please review the following return policy guidelines:

Contact Us for Returns: Prior communication is essential before initiating any return process. Please reach out to us in advance to facilitate a smooth return experience.

Obtain Return Merchandise Authorization (RMA#): A Return Merchandise Authorization number (RMA#) is mandatory for all refund or return requests. Items returned without an RMA number will not be accepted.

Dead on Arrival (DOA) or Shipping Damage: If you receive a DOA or a shipping-damaged item, please notify us within 7 days of receipt for prompt assistance.

Restocking Fee: A 20% restocking fee will apply to all non-defective returns, parts that remain unused, parts that are not needed, and incorrectly ordered parts.

Return Shipping Responsibility: Customers are responsible for covering all return shipping charges under all circumstances.

Non-Refundable Shipping Fee: The shipping fee is non-refundable for all return shipments, including defective returns, unnecessary parts, and incorrectly ordered parts.

Wrong Item Ordered: If you mistakenly order the wrong items, you will be responsible for paying the two-way shipping fee.

Proper Packing Instructions: To ensure the safe return of the LCD screen, please utilize our recommended packing methods such as bubble wrap, rope, sponge form, or similar protective measures. Avoid using envelopes or fragile boxes, as LCD screens are delicate and require secure packaging.

C054SWN1 R0 LCD Panel FAQ :

Q: Can You declare my order of C054SWN1 R0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of C054SWN1 R0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How to make payment of C054SWN1 R0 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of C054SWN1 R0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
