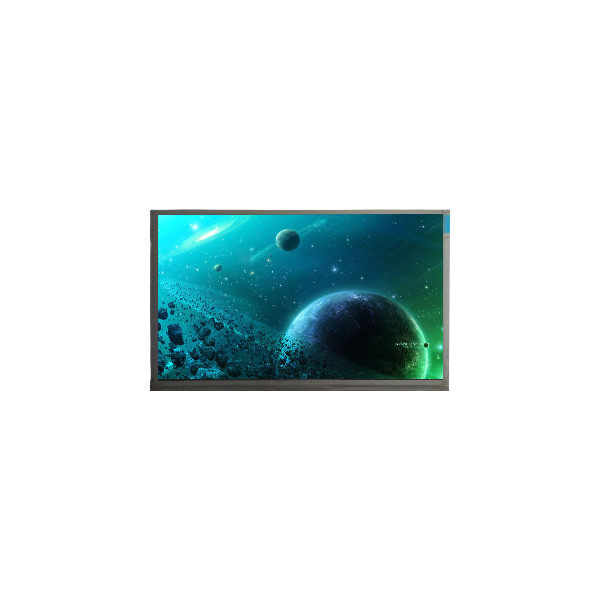

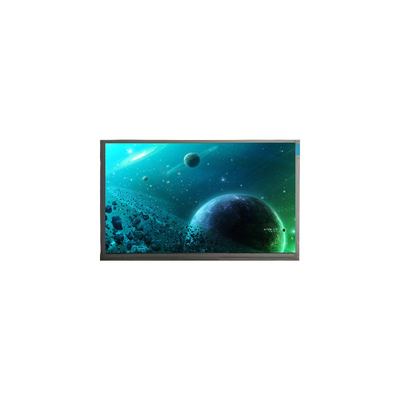

N173FGE-P23 17.3 inch LCD Screen Display 1600*900 LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | N173FGE-P23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N173FGE-P23 | Diagonal Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 106PPI | Pixel Format: | RGB Vertical Stripe |
| Display Colors: | 262K 60% NTSC | Contrast Ratio: | No B/L , With LED Driver |
| Application: | Laptop | Signal Interface: | LVDS (2 Ch, 6-bit) , 40 Pins Connector |
| Power Supply: | 3.3V (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
N173FGE-P23 17.3 inch LCD Screen Display 1600*900 LCD panel
N173FGE-P23 LCD Panel Product details :
| Brand | Chimei Innolux |
| Model P/N | N173FGE-P23 |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1600(RGB)×900, HD+ 106PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 382.08(W)×214.92(H) mm |
| Bezel Opening | - |
| Outline Dim. | 392.5(W)×223.8(H) ×1.27(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 650:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Glass Depth | 0.50+0.50 mm |
| Transmittance | 6.3% (Typ.)(with Polarizer) |
| Support Color | 262K 60% NTSC |
| Light Source | No B/L , With LED Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Driver IC | Built-in 3 source COF + 3 gate COG chips |
| Interface Type | LVDS (2 ch, 6-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
N173FGE-P23 LCD Screen Payment Terms:
Payment Options: YONGS provides a preferred and secure payment method. We accept payments through YONGS, PayPal, and various other payment terms. Additionally, you have the option to pay via credit card through PayPal for added convenience and security.
Import Duties and Taxes: Please note that products may be subject to import duties, taxes, and other charges. These fees are not included in the product price or shipping charges and are the sole responsibility of the recipient.
Order Cancellation Policy: Orders that remain unpaid beyond 7 business days will be automatically cancelled. We kindly ask our customers to complete their payment within this timeframe to ensure timely processing of their orders.
N173FGE-P23 LCD Panel Shipping and Package :
N173FGE-P23 LCD Screen Product Warranty Information:
Thank you for choosing YONGS products. We are committed to providing high-quality LCD screens to our customers. Please review the following warranty information:
Warranty Period: YONGS offers a warranty period of 120 days against any manufacturer defects. These defects include issues such as fuzziness, image problems, V-lines, or H-lines.
Dead Pixel Policy: Our warranty covers LCD screens with 3-5 dead pixels, in accordance with the ISO 13406-2 norm. If you disagree with this norm, we kindly ask you to refrain from purchasing this product.
We stand behind the quality of our products and aim to ensure your satisfaction with your purchase. Should you encounter any issues within the warranty period, please don't hesitate to contact us for assistance.
Thank you for your trust in YONGS products.
N173FGE-P23 LCD Screen Return Policy:
Thank you for choosing our LT043MDQ6000 LCD screen. We strive to ensure your satisfaction with our products. Please review the following return policy guidelines:
Contact Us for Returns: Prior communication is essential before initiating any return process. Please reach out to us in advance to facilitate a smooth return experience.
Obtain Return Merchandise Authorization (RMA#): A Return Merchandise Authorization number (RMA#) is mandatory for all refund or return requests. Items returned without an RMA number will not be accepted.
Dead on Arrival (DOA) or Shipping Damage: If you receive a DOA or a shipping-damaged item, please notify us within 7 days of receipt for prompt assistance.
Restocking Fee: A 20% restocking fee will apply to all non-defective returns, parts that remain unused, parts that are not needed, and incorrectly ordered parts.
Return Shipping Responsibility: Customers are responsible for covering all return shipping charges under all circumstances.
Non-Refundable Shipping Fee: The shipping fee is non-refundable for all return shipments, including defective returns, unnecessary parts, and incorrectly ordered parts.
Wrong Item Ordered: If you mistakenly order the wrong items, you will be responsible for paying the two-way shipping fee.
Proper Packing Instructions: To ensure the safe return of the LCD screen, please utilize our recommended packing methods such as bubble wrap, rope, sponge form, or similar protective measures. Avoid using envelopes or fragile boxes, as LCD screens are delicate and require secure packaging.
N173FGE-P23 LCD Panel FAQ :
Q: Can I pay my goods N173FGE-P23 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods N173FGE-P23 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long will I receive my goods of N173FGE-P23 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for N173FGE-P23 ?
A: We accept T/T , Paypal , western union .
