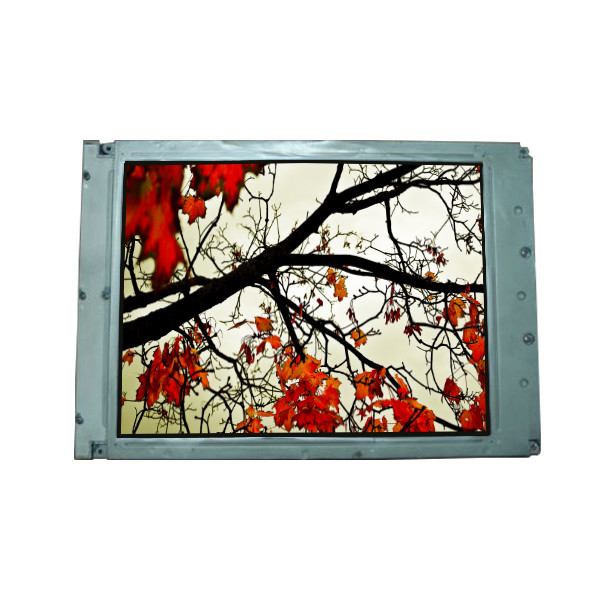

EDTCA41 LCD Screen Display 6.5 inch LCD panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | EDTCA41 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | EDTCA41 | Diagonal Size: | 6.5" |
---|---|---|---|
Resolution: | 320(RGB)×234 60PPI | Pixel Format: | RGB Vertical Stripe |
Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (TM) |
Viewing Angle: | 60/60/30/50 (Typ.)(CR≥10) | Designed For: | Automotive Display |
Product Description
EDTCA41 LCD Screen Display 6.5 inch LCD panel
EDTCA41 LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | EDTCA41 |
Diagonal Size | 6.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 320(RGB)×234 60PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 133.44(W)×97.34(H) mm |
Bezel Opening | - |
Outline Size | 147.3(W)×111.8(H)(D) mm |
Treatment | - |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 150 : 1 (Typ.) (TM) |
Viewing Angle | 60/60/30/50 (Typ.)(CR≥10) |
Response | 56 (Typ.)(Tr+Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | Full color |
Backlight | |
Mass | 235g |
Used for | Automotive Display |
Refresh Rate | 60Hz |
Touchscreen | - |
Signal Type | AnalogFPC |
EDTCA41 LCD Screen Display 6.5 inch LCD panel |
EDTCA41 LCD Panel Shipping and Package :
EDTCA41 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel EDTCA41 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
