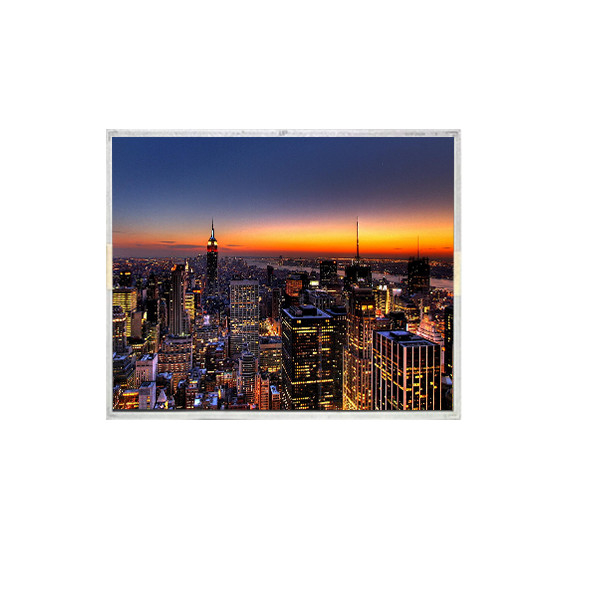

LC104S1-A1 10.4 inch 800*600 LCD screen TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LC104S1-A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC104S1-A1 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 211.2(W)×158.4(H) Mm | Outline Dim.: | 244.5(H)×172(V)×6.6(D)mm |
| Luminance: | 120 Cd/m² (Typ.) | Contrast Ratio: | 40:1 (Typ.) (TM) |
| Viewing Angle: | 25/25/25/45 (Min.)(CR≥10) | Interface Type: | LVDS (1 Ch, 6-bit), 20 PinsConnector |
Product Description
LC104S1-A1 10.4 inch 800*600 LCD screen TFT Module
LC104S1-A1 LCD Panel Product details :
| Brand | LG |
| Model P/N | LC104S1-A1 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.2(W)×161.8(H) mm |
| Outline Dim. | 244.5(H)×172(V)×6.6(D)mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 120 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 25/25/25/45 (Min.)(CR≥10) |
| Operating Mode | TN, Normally White, Transflective |
| Support Color | 262K |
| Light Source | CCFL [1 pcs], 20K hours, W/O Driver |
| Weight | 310/320g (Typ./Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LC104S1-A1 10.4 inch 800*600 LCD screen TFT Module | |
LC104S1-A1 LCD Screen Payment:
PayPal Payment:
Our primary method of payment is PayPal due to its buyer protection and reputation for safety in online transactions.
Please ensure you have a PayPal account ready for payment.
Confirm Shipping Address:
Before making the payment, kindly double-check that your shipping address is accurate.
We will only ship the item to the address provided during checkout, so it's crucial to verify its correctness.
Shipping Address Verification:
Please review your shipping address carefully before finalizing your purchase to avoid any shipping delays or errors.
Other Payment Methods:
If PayPal is not suitable for you, we also support alternative payment methods. Please let us know your preferred method, and we will provide instructions accordingly.
Once you've confirmed your shipping address and selected your preferred payment method, proceed with the payment, and we'll ensure prompt processing and shipment of your order. If you have any further questions or need assistance, feel free to reach out.
LC104S1-A1 LCD Panel Shipping and Package :
Shipping Policy for LC104S1-A1 LCD Screen:
Comprehensive Shipping Coverage: Our shipping rates encompass the entirety of the shipping process, inclusive of handling, packaging, and associated labor costs. We strive to provide a transparent and all-encompassing service to our valued customers.
Address Responsibility: It is imperative for customers to provide accurate delivery addresses. We cannot be held liable for undeliverable addresses. In instances where items are returned due to incorrect address details supplied by the buyer, we reserve the right to levy shipping fees for resending the package. Please note that any non-received items attributed to invalid addresses registered on PayPal are not covered by our full refund or replacement policy.
Local Pickup Option: For added convenience, we offer a local pickup option. Customers located nearby have the opportunity to collect their orders directly, providing a hassle-free solution for obtaining their desired products.
LC104S1-A1 LCD Panel FAQ :
Q: Can I pay my goods LC104S1-A1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LC104S1-A1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LC104S1-A1 ?
A: Of course!sample order is welcome !
Q: How to make payment for LC104S1-A1 ?
A: We accept T/T , Paypal , western union .
LC104S1-A1 LCD Screen Contact Us:
Delivery Time frame:
If you haven't received your goods within 45 days (excluding Christmas and New Year's Day), please don't hesitate to contact us.
Resolution Options:
In case of any delivery issues, such as non-receipt of goods, we will either resend the items or provide a full refund without any excuses.
We prioritize ensuring a positive buying experience for our customers, even when delivery circumstances are beyond our control.
Customer Support:
Your satisfaction is our priority, and we are committed to providing the best possible service.
If you have any questions or concerns, please reach out to us immediately, and we will assist you promptly.
Appreciation:
We genuinely value your support and appreciate your business.
We wish you a pleasant shopping experience and look forward to serving you again in the future.
If you encounter any issues with your order or have any queries, please feel free to contact us, and we will be more than happy to assist you. Thank you for choosing us, and happy shopping!
