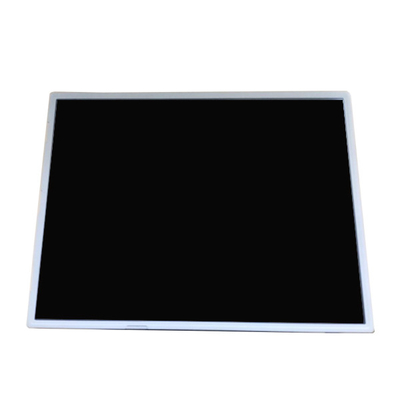

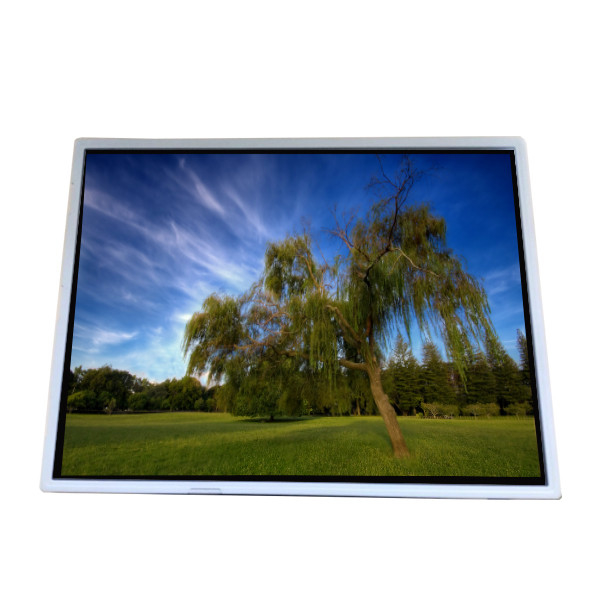

VVX21F144H00 21.3 inch 1400:1 LVDS LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Panasonic |
| Model Number: | VVX21F144H00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | VVX21F144H00 | Diagonal Size: | 21.3" |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200, UXGA 94PPI | Pixel Format: | RGB Vertical Stripe |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 1400:1 (Typ.) (TM) |
| Color Depth: | 16.7M 76%NTSC | Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode: | IPS, Normally Black, Transmissive | Designed For: | Medical Imaging |
Product Description
VVX21F144H00 21.3 inch 1400:1 LVDS LCD Display Screen Panel
VVX21F144H00 LCD Panel Product details :
| Brand | Panasonic |
| Model P/N | VVX21F144H00 |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Bezel Opening | 436.0(W)×328.0(H) mm |
| Outline Size | 456(W)×349.5(H)×22.8(D) mm |
| Brightness | 700 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 76%NTSC |
| Frequency | 60Hz |
| Weight | 3.00Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 11/9 (Typ.)(Tr/Td) |
| Lamp Type | 10S5P×2CN WLED , 70K hours , Without Driver |
| Touch Screen | Without |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| VVX21F144H00 21.3 inch 1400:1 LVDS LCD Display Screen Panel | |
Product Type: VVX21F144H00 LCD Screen
