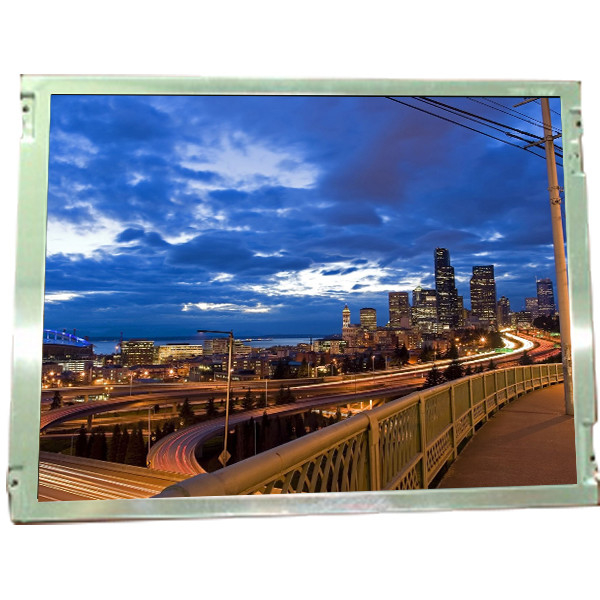

LB150X02-TL02 Original 15.0 inch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB150X02-TL02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB150X02-TL02 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Outline Dim.: | 326.3(H)×253.1(V)×14.8(D) Mm | Luminance: | 500 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 70/70/65/75 (Typ.)(CR≥10) |
Product Description
LB150X02-TL02 Original 15.0 inch LCD Display Screen
LB150X02-TL02 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB150X02-TL02 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Dim. | 326.3(H)×253.1(V)×14.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/65/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 60%NTSC |
| Light Source | CCFL [4 pcs], 50K hours, W/O Driver |
| Weight | 1.30Kgs (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LB150X02-TL02 Original 15.0 inch LCD Display Screen | |
LB150X02-TL02 LCD Panel Shipping and Package :
LB150X02-TL02 LCD Screen Reminder:
We would like to bring to your attention an important aspect regarding your purchase: Our listed price does not include any customs tax or fees applicable in the destination country. It's essential to be aware that when your goods undergo clearance at customs in the destination country, you may be required to pay certain taxes or fees as per the laws and regulations governing imports in that specific location.
Customs procedures and associated charges vary from one country to another, and it's crucial to acquaint yourself with the regulations enforced by the customs authority in your destination country. While we strive to provide transparency regarding our pricing, please note that any customs taxes or fees incurred upon importation are the responsibility of the buyer.
We advise you to consult with your local customs office or relevant authorities to gain clarity on the applicable duties and taxes before placing your order. This proactive approach ensures a smooth and hassle-free importation process, preventing any unexpected surprises upon the arrival of your goods.
LB150X02-TL02 LCD Screen Warning:
*Excluding installation guidelines, we do not assume any responsibility for any damage caused by the installation of this accessory. Please ensure that you understand how to install before subscribing. Thank you for your understanding!
*We simply cannot guarantee that you will receive tablet compatible content,
*If you do not accept A+compatible touch screen digitizers, but their flexible cable numbers are different, such as our title/description/connected photos already out of the market, please do not purchase, thank you!
We test all products before sending. But we cannot control everything, the screen is easily damaged during transportation. Therefore, please test the product before installation. If you find any issues, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service or refund service. We are not responsible for any issues that may arise during the installation process.
LB150X02-TL02 LCD Panel FAQ :
Q: How to make payment of LB150X02-TL02 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LB150X02-TL02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LB150X02-TL02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LB150X02-TL02 ?
A: Of course!sample order is welcome !
