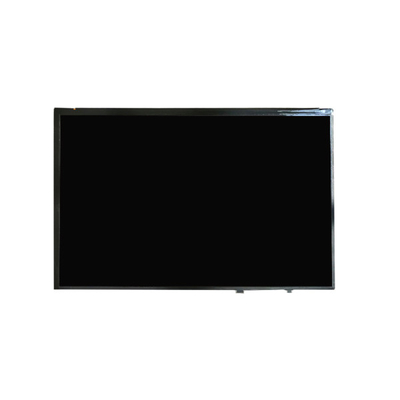

VVX10T025J00 10.1 inch eDP LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX10T025J00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX10T025J00 | Diagonal Size: | 10.1" |
---|---|---|---|
Resolution: | 2560(RGB)×1600, WQXGA 299PPI | Active Area: | 216.96(W)×135.6(H) Mm |
Response: | 30 (Max.)(Tr+Td) | Color Depth: | 16.7M 72%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description

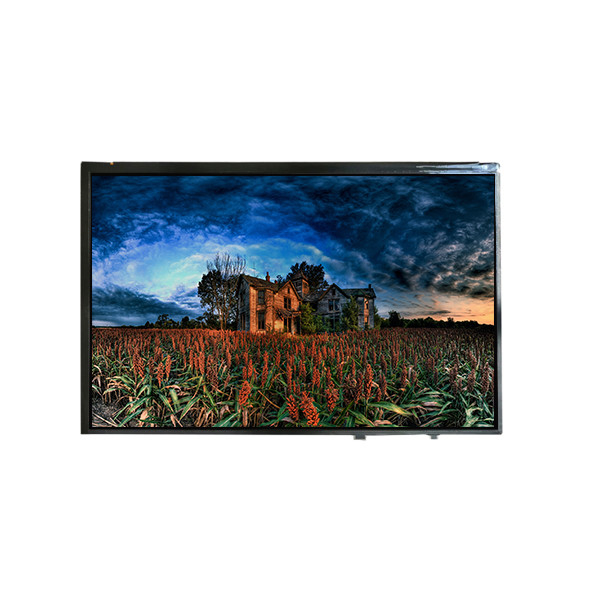

VVX10T025J00 10.1 inch eDP LCD Screen Display Panel
VVX10T025J00 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX10T025J00 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 2560(RGB)×1600, WQXGA 299PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | - |
Outline Dim. | 229.75(W)×151.22(H)×4.61(D) mm |
Treatment | Antiglare |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Max.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M 72%NTSC |
Light Source | WLED [6S8P], With LED Driver |
Weight | 125g (Typ.) |
Designed For | Pad & Tablet |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (4 Lanes), eDP1.3, 40 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
VVX10T025J00 10.1 inch eDP LCD Screen Display Panel |
VVX10T025J00 LCD Panel Shipping and Package :
VVX10T025J00 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel VVX10T025J00 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
