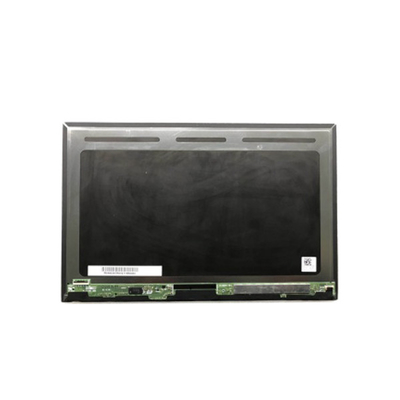

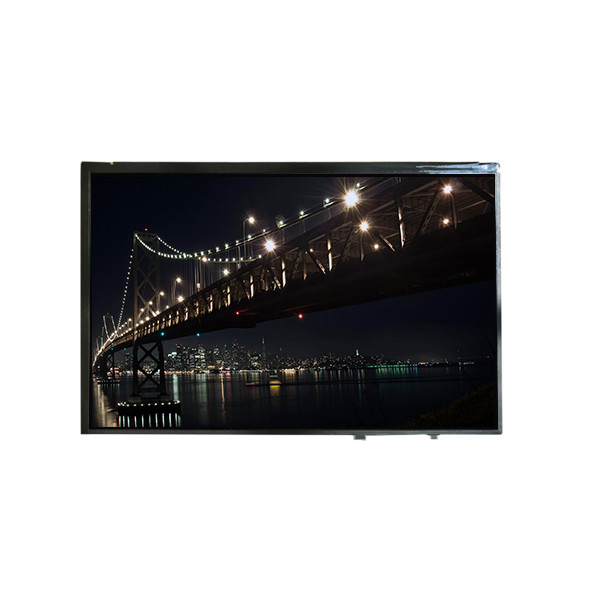

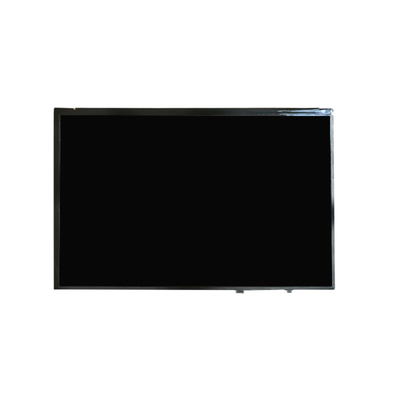

VVX10T022N96 10.1 inch eDP LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX10T022N96 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX10T022N96 | Diagonal Size: | 10.1" |
---|---|---|---|
Resolution: | 2560(RGB)×1600, WQXGA 299PPI | Active Area: | 216.96(W)×135.6(H) Mm |
Response: | 30 (Max.)(Tr+Td) | Color Depth: | 16.7M 72%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVX10T022N96 10.1 inch eDP LCD Screen Display Panel
VVX10T022N96 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX10T022N96 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 2560(RGB)×1600, WQXGA 299PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | - |
Outline Size | 227.65(W)×147.85(H)×4.37(D) mm |
Surface | Hard coating |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥100) |
Display Mode | IPS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 30 (Max.)(Tr+Td) |
Display Colors | 16.7M 72%NTSC |
Lamp Type | 7S6PWLED, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 117g |
Application | Pad & Tablet |
Signal Interface | eDP (4 Lanes), eDP1.3, 51 pinsConnector |
Input Voltage | 3.7V (Typ.) |
Environment | Operating Temp.: -20 ~ 50 °C ; Storage Temp.: -30 ~ 60 °C |
VVX10T022N96 10.1 inch eDP LCD Screen Display Panel |
VVX10T022N96 LCD Panel Shipping and Package :
VVX10T022N96 LCD Panel FAQ :
Q: Do you accept the VVX10T022N96 sample order?
A: Yes , sample order is welcome.
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
