VVX10F087J00 10.0 inch 1000 : 1 LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX10F087J00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX10F087J00 | Diagonal Size: | 10.0" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 221PPI | Active Area: | 1920(RGB)×1080, FHD 221PPI |
Response: | 26 (Typ.)(Tr+Td) | Color Depth: | 16.7M 72%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Healthcare |
Product Description

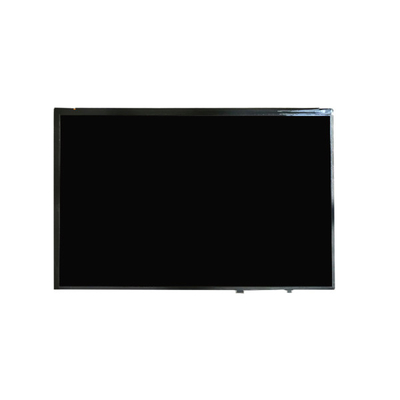

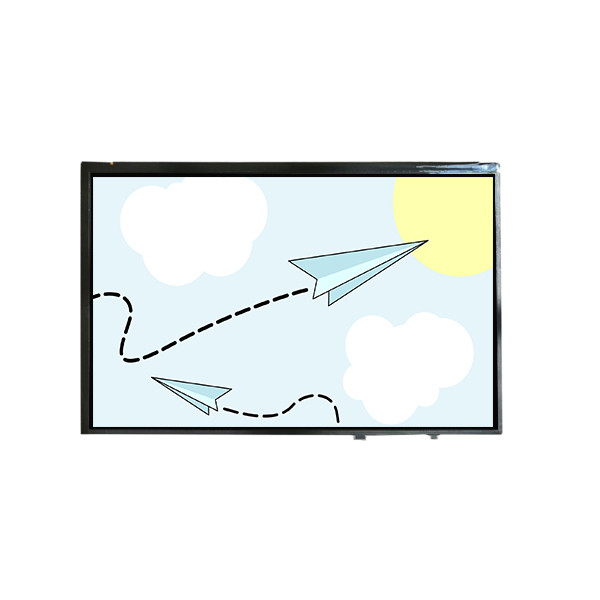

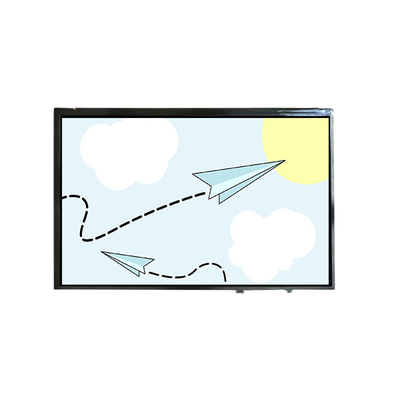

VVX10F087J00 10.0 inch 1000 : 1 LCD Screen Display Panel
VVX10F087J00 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX10F087J00 |
Diagonal Size | 10.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 221PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 220.32(W)×123.93(H) mm |
Bezel Opening | - |
Outline Size | 232.7(W)×138.05(H)×6(D) mm |
Brightness | 300 cd/m² (Typ.) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Best View on | Symmetry |
Display Colors | 16.7M 72%NTSC |
Frequency | 60Hz |
Weight | 170g (Typ.) |
Surface | Antiglare |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Display Mode | IPS, Normally Black, Transmissive |
Response Time | 26 (Typ.)(Tr+Td) |
Lamp Type | WLED , 40K hours , With LED Driver |
Touch Screen | Without |
Application | Healthcare |
Signal Interface | eDP (2 Lanes), eDP1.2, 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 70 °C |
VVX10F087J00 10.0 inch 1000 : 1 LCD Screen Display Panel |
VVX10F087J00 LCD Panel Shipping and Package :
VVX10F087J00 LCD Panel FAQ :
Q: Do you accept the VVX10F087J00 sample order?
A: Yes , sample order is welcome.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
