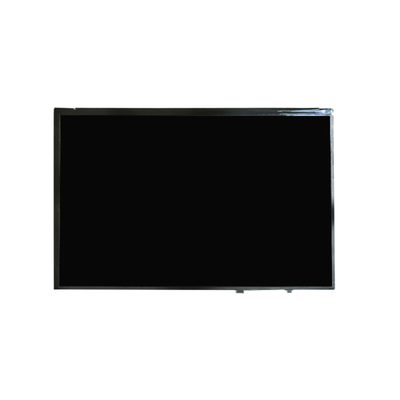

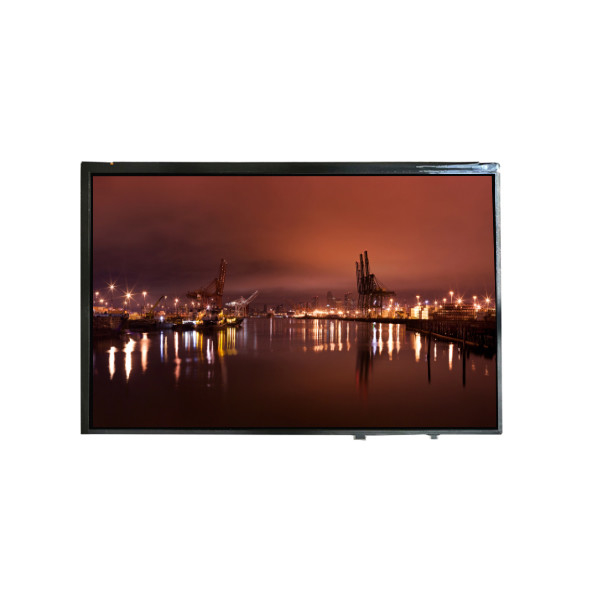

VVX10F034N90 10.1 inch 800 : 1 LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX10F034N90 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX10F034N90 | Diagonal Size: | 10.1" |
---|---|---|---|
Resolution: | 1920(RGB)×1200, WUXGA 225PPI | Active Area: | 216.576(W)×135.36(H) Mm |
Response: | 30 (Typ.)(Tr+Td) Ms | Color Depth: | 16.7M 89%NTSC |
Work Mode: | IPS-Pro, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVX10F034N90 10.1 inch 800 : 1 LCD Screen Display Panel
VVX10F034N90 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX10F034N90 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 225PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.576(W)×135.36(H) mm |
Bezel Opening | - |
Outline(mm) | 227.65 × 147.5× 4.98 (H×V×D) |
Treatment | Hard coating |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥100) |
Response | 30 (Typ.)(Tr+Td) ms |
Good View at | Symmetry |
Work Mode | IPS-Pro, Normally Black, Transmissive |
Color Depth | 16.7M 89%NTSC |
Backlight | 8S6PWLED, No Driver |
Mass | 120/128g (Typ./Max.) |
Used for | Pad & Tablet |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | MIPI (4 data lanes), 51 pinsConnector |
Voltage Supply | 3.7V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
VVX10F034N90 10.1 inch 800 : 1 LCD Screen Display Panel |
VVX10F034N90 LCD Panel Shipping and Package :
VVX10F034N90 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the VVX10F034N90 sample order?
A: Yes , sample order is welcome.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
