VVX10F004B90 10.1 inch 1000: 1 LCD Screen Display Panel

Brand Name:	Panasonic
Model Number:	VVX10F004B90
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

VVX10F004B90

Diagonal Size:

10.1"

Resolution:

1920(RGB)×1200, WUXGA 224PPI

Active Area:

217.44(W)×135.9(H) Mm

Response:

30 (Typ.)(Tr+Td) Ms

Color Depth:

16.7M 50%NTSC

Work Mode:

IPS, Normally Black, Transmissive

Used For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

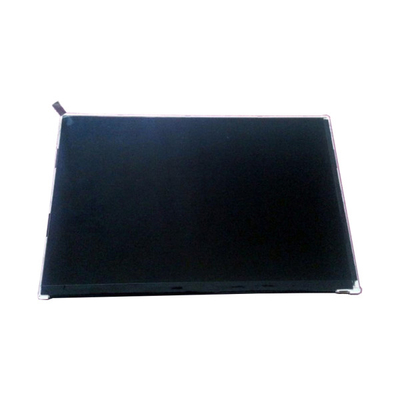

VVX10F004B90 10.1 inch 1000: 1 LCD Screen Display Panel

VVX10F004B90 LCD Panel Product details :

Brand	Panasonic
Model P/N	VVX10F004B90 1 Compatible
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 224PPI
Pixel Format	RGB Vertical Stripe
Active Area	217.44(W)×135.9(H) mm
Bezel Opening	-
Outline Size	228.86(W)×152.5(H)×4.18(D) mm
Brightness	600 cd/m² (Min.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥100)
Best View on	Symmetry
Display Colors	16.7M 50%NTSC
Frequency	60Hz
Weight	137g
Surface	Hard coating, Antireflection
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	30 (Max.)(Tr+Td)
Lamp Type	10S6P WLED, With LED Driver
Touch Screen	Without
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 45 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

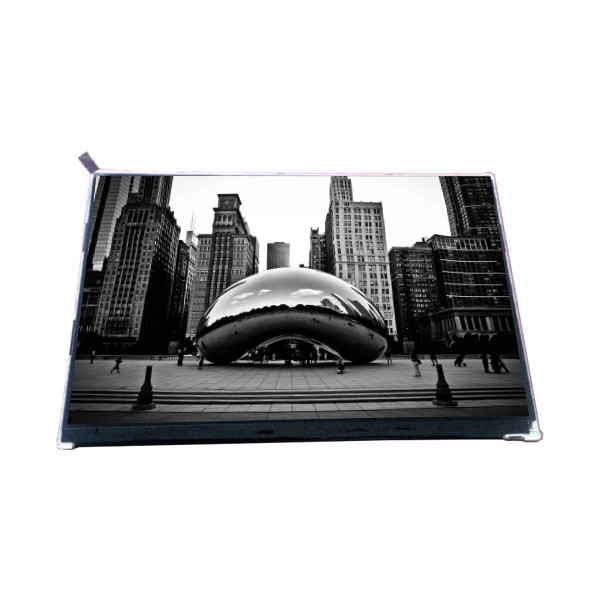

VVX10F004B90 10.1 inch 1000: 1 LCD Screen Display Panel

VVX10F004B90 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

VVX10F004B90 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

VVX10F004B90 LCD Panel Shipping and Package :

VVX10F004B90 LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: Do you accept the VVX10F004B90 sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

VVX10F004B90 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
