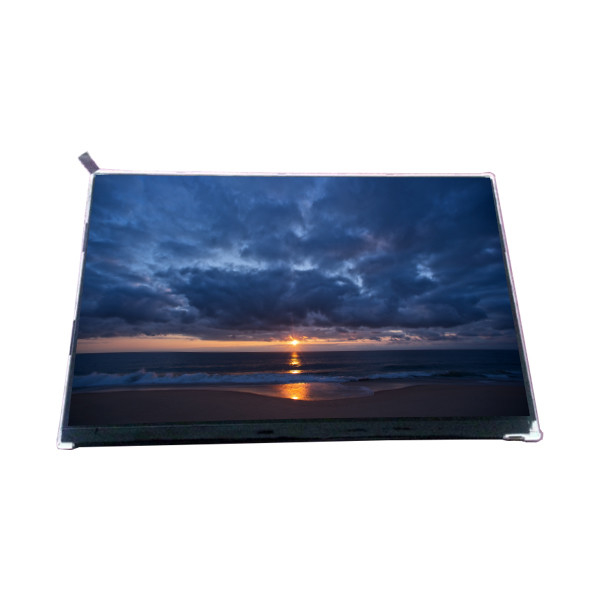

VVX10F002B00 10.1 inch 1000: 1 LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX10F002B00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX10F002B00 | Diagonal Size: | 10.1" |
---|---|---|---|
Resolution: | 1920(RGB)×1200, WUXGA 224PPI | Active Area: | 217.44(W)×135.9(H) Mm |
LuminResponse Timeance: | 30 (Max.)(Tr/Td) | Color Depth: | 16.7M 50%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVX10F002B00 10.1 inch 1000: 1 LCD Screen Display Panel
VVX10F002B00 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX10F002B00 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 224PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 217.44(W)×135.9(H) mm |
Bezel Opening | - |
Luminance | - |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Max.)(Tr/Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M 50%NTSC |
Light Source | WLED [6S6P], With LED Driver |
Weight | - |
Designed For | Pad & Tablet |
Frame Rate | 60Hz |
Touch Panel | - |
Interface Type | MIPI (4 data lanes), 40 pinsConnector |
Power Supply | 3.7V (Typ.) |
Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
VVX10F002B00 10.1 inch 1000: 1 LCD Screen Display Panel |
VVX10F002B00 LCD Panel Shipping and Package :
VVX10F002B00 LCD Panel FAQ :
Q: Do you accept the VVX10F002B00 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
