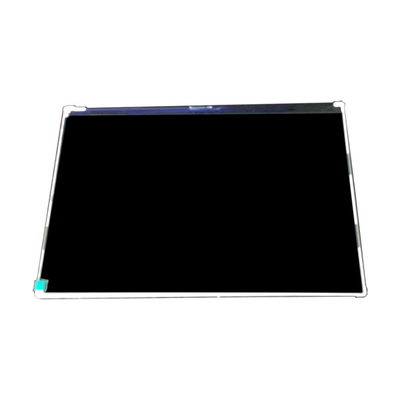

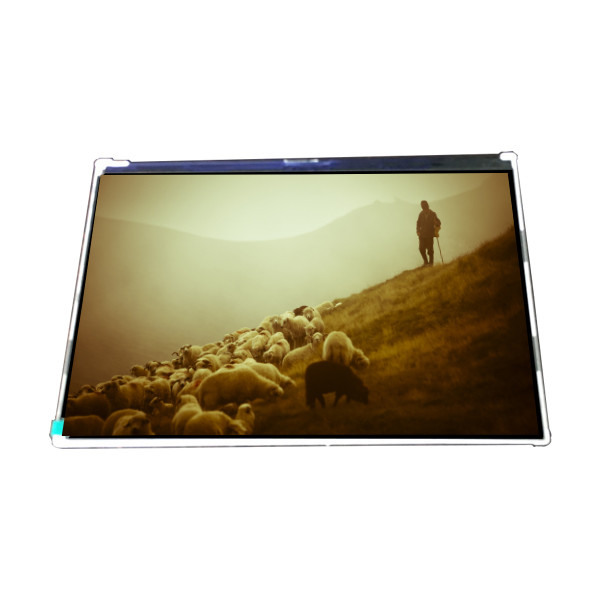

VVX09F035M10 8.9 inch 800 : 1 LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX09F035M10 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX09F035M10 | Diagonal Size: | 8.9" |
---|---|---|---|
Resolution: | 1920(RGB)×1200, WUXGA 254PPI | Active Area: | 191.52(W)×119.7(H) Mm |
Luminance: | 350 Cd/m² (Typ.) | Color Depth: | 16.7M 50%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVX09F035M10 8.9 inch 800 : 1 LCD Screen Display Panel
VVX09F035M10 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX09F035M10 |
Diagonal Size | 8.9" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 254PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 191.52(W)×119.7(H) mm |
Bezel Opening | - |
Outline Size | 203.5(W)×135.9(H)×4.8(D) mm |
Brightness | 350 cd/m² (Typ.) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥80) |
Best View on | Symmetry |
Display Colors | 16.2M 50%NTSC |
Frequency | 60Hz |
Weight | 130g (Max.) |
Surface | Hard coating |
Contrast Ratio | 800:1 (Typ.) (TM) |
Display Mode | IPS-Pro, Normally Black, Transmissive |
Response Time | 30 (Max.)(Tr+Td) |
Lamp Type | 7S5P WLED, Without Driver |
Touch Screen | Without |
Application | Pad & Tablet |
Signal Interface | eDP (2 Lanes), 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
VVX09F035M10 8.9 inch 800 : 1 LCD Screen Display Panel |
VVX09F035M10 LCD Panel Shipping and Package :
VVX09F035M10 LCD Panel FAQ :
Q: Do you accept the VVX09F035M10 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
