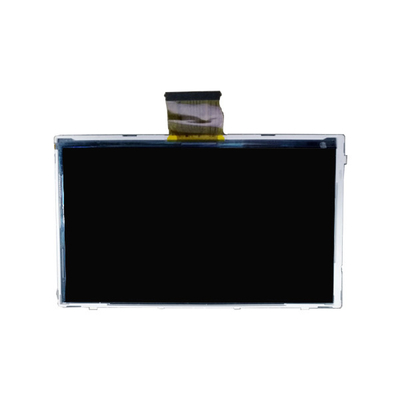

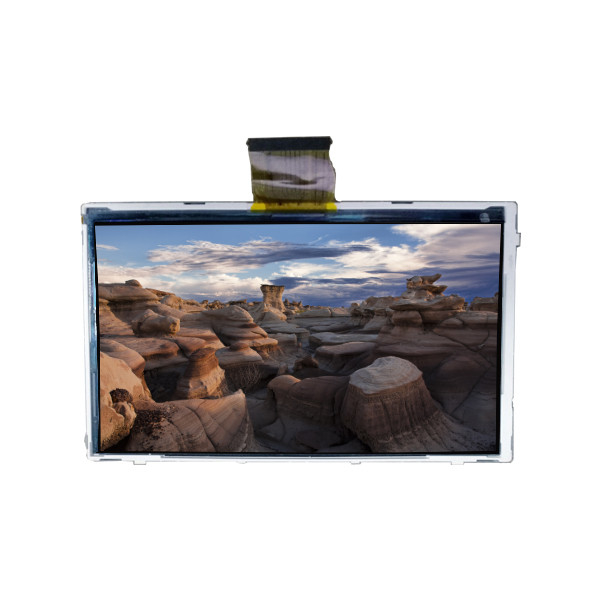

VVX07F015M00 7.0 inch 16.7M 72%NTSC LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Panasonic |
| Model Number: | VVX07F015M00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | VVX07F015M00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920, WUXGA 322PPI | Active Area: | 94.5(W)×151.2(H) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Color Depth: | 16.7M 72%NTSC |
| Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVX07F015M00 7.0 inch 16.7M 72%NTSC LCD Screen Display Panel
VVX07F015M00 LCD Panel Product details :
| Brand | Panasonic |
| Model P/N | VVX07F015M00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1200(RGB)×1920, WUXGA 322PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 94.5(W)×151.2(H) mm |
| Bezel Opening | - |
| Outline Size | 104.52(W)×161.87(H)×2.4(D) mm |
| Brightness | 450 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 66.0/70.0g (Typ./Max.) |
| Surface | Hard coating |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 30 (Max.)(Tr+Td) |
| Lamp Type | 4S6P WLED, Without Driver |
| Touch Screen | Without |
| Application | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes), 40 pinsConnector |
| Input Voltage | 1.8/3.7V (Typ.)(VCC/VDD) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| VVX07F015M00 7.0 inch 16.7M 72%NTSC LCD Screen Display Panel | |
VVX07F015M00 LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
VVX07F015M00 LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
VVX07F015M00 LCD Panel Shipping and Package :
VVX07F015M00 LCD Panel FAQ :
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the VVX07F015M00 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
