VVX06H007J00 6.2 inch 16.7M 51%NTSC LCD Screen Display Panel
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVX06H007J00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVX06H007J00 | Diagonal Size: | 6.2" |
---|---|---|---|
Resolution: | 854(RGB)×480, FWVGA 158PPI | Active Area: | 137.067(W)×77.04(H) Mm |
Luminance: | 365 Cd/m² (Typ.) | Color Depth: | 16.7M 51%NTSC |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Industrial |
Product Description

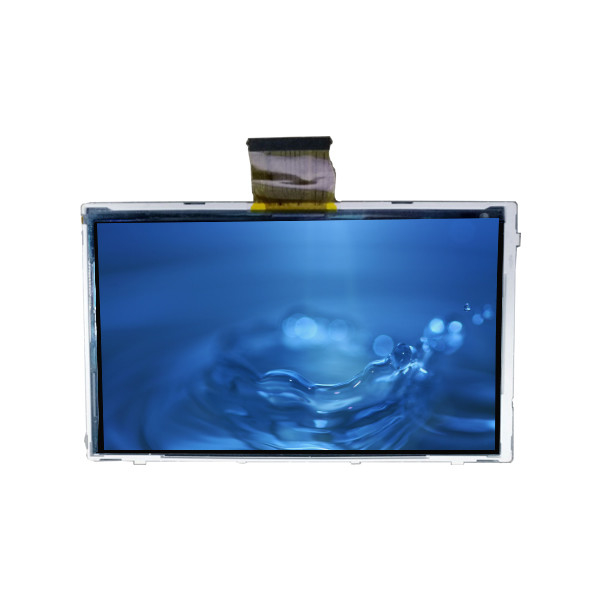

VVX06H007J00 6.2 inch 16.7M 51%NTSC LCD Screen Display Panel
VVX06H007J00 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVX06H007J00 |
Diagonal Size | 6.2" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 854(RGB)×480, FWVGA 158PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 137.067(W)×77.04(H) mm |
Bezel Opening | - |
Outline Dim. | 151(H)×92(V)×5.1(D) mm |
Treatment | Antiglare, Hard coating (2H) |
Luminance | 365 cd/m² (Typ.) |
Contrast Ratio | 750:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 25/20 (Typ.)(Tr/Td) |
Viewing Angle | - |
Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M 51%NTSC |
Light Source | WLED [6S2P], W/O Driver |
Weight | 102g (Typ.) |
Designed For | Industrial |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit), 50 pinsConnector |
Power Supply | 2.8/5.5/-5.5/24/-12V (Typ.)(VDD/VSP/VSN/VGH/VGL) |
Environment | Operating Temperature: 0 ~ 40 °C; Storage Temperature: -25 ~ 60 °C |
VVX06H007J00 6.2 inch 16.7M 51%NTSC LCD Screen Display Panel |
VVX06H007J00 LCD Panel Shipping and Package :
VVX06H007J00 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of VVX06H007J00 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel VVX06H007J00 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
