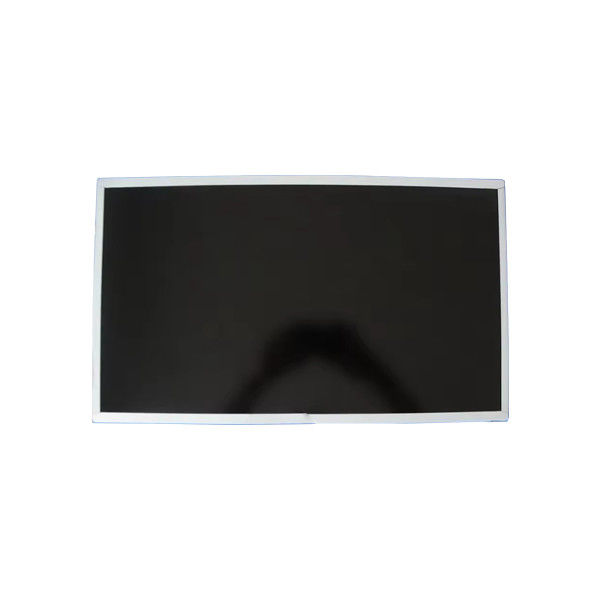

B140XTN03.3 HW3A 14.0 inch 1366*768 LCD Screen Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XTN03.3 HW3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140XTN03.3 HW3A | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Luminance: | 220 Cd/m² (Typ.) | Contrast Ratio: | 400 : 1 (Typ.) (TM) |
| Work Mode: | TN, Normally White, Transmissive | Used For: | Laptop |
Product Description
B140XTN03.3 HW3A 14.0 inch 1366*768 LCD Screen Display Module
B140XTN03.3 HW3A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B140XTN03.3 HW3A |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Dim. | 320.4(W)×205.1(H)×3.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 12K hours , With LED Driver |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Type | eDP (1 Lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B140XTN03.3 HW3A LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
B140XTN03.3 HW3A LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
B140XTN03.3 HW3A LCD Panel Shipping and Package :
B140XTN03.3 HW3A LCD Panel FAQ :
Q: Do you accept sample orders of B140XTN03.3 HW3A ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of B140XTN03.3 HW3A vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of B140XTN03.3 HW3A ?
A: The order will be shipped within 2-3 working days after received your payment.
B140XTN03.3 HW3A LCD Display Service Hours:
Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:
Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM
However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.
Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.
Thank you for your trust in our products and services. We look forward to serving you.
