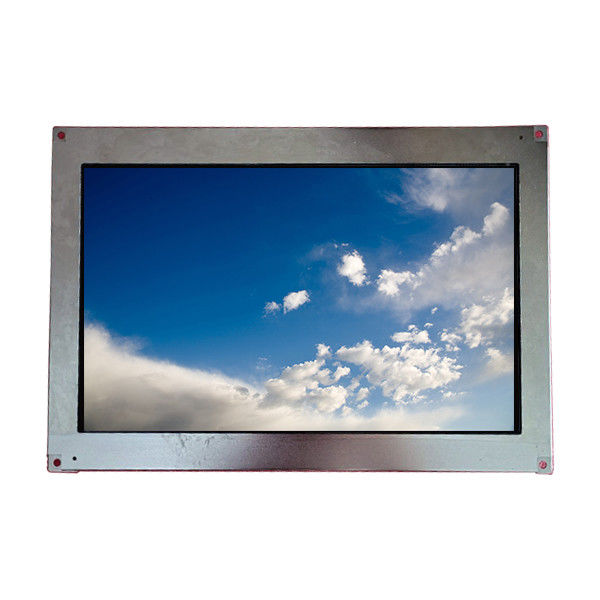

VVF07H119A90 7.0 inch 1000 : 1 LCD Screen Display Module
Product Details:
Place of Origin: | China |
Brand Name: | Panasonic |
Model Number: | VVF07H119A90 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | VVF07H119A90 | Diagonal Size: | 7.0" |
---|---|---|---|
Resolution: | 800(RGB)×1280, WXGA 215PPI | Active Area: | 101.55(W)×160.07(H)×0.82(D) |
Luminance: | 0 (cd/m²) | Viewing Angle: | 80/80/80/80 (Min.)(CR≥100) |
Work Mode: | IPS, Normally Black, Transmissive | Used For: | Pad & Tablet |
Product Description
VVF07H119A90 7.0 inch 1000 : 1 LCD Screen Display Module
VVF07H119A90 LCD Panel Product details :
Brand | Panasonic |
Model P/N | VVF07H119A90 |
Diagonal Size | 7.0" |
Panel Type | a-Si TFT-LCD, CELL, FOG |
Resolution | 800(RGB)×1280, WXGA 215PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 94.2(W)×150.72(H) mm |
Bezel Opening | - |
Outline(mm) | 101.55(W)×160.07(H)×0.82(D) |
Luminance | 0 (cd/m²) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥100) |
Good View at | Symmetry |
Glass Thickness | 0.25+0.25 mm |
Color Depth | 262K 60% NTSC |
Mass | 32.0g |
Refresh Rate | 60Hz |
Treatment | Hard coating |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Work Mode | IPS, Normally Black, Transmissive |
Response | 30 (Max.)(Tr+Td) ms |
Transmissivity | 4.5% (Typ.)(with Polarizer) |
Backlight | No B/L |
Used for | Pad & Tablet |
Touchscreen | Without |
Driver IC list | Built-inCOG2 source + 2 gate chips |
Signal Type | MIPI (4 data lanes), 34 pins Connector |
Voltage Supply | 1.8/3.3V (Typ.)(VCC/VDD) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
VVF07H119A90 7.0 inch 1000 : 1 LCD Screen Display Module |
VVF07H119A90 LCD Panel Shipping and Package :
VVF07H119A90 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of VVF07H119A90 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel VVF07H119A90 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
