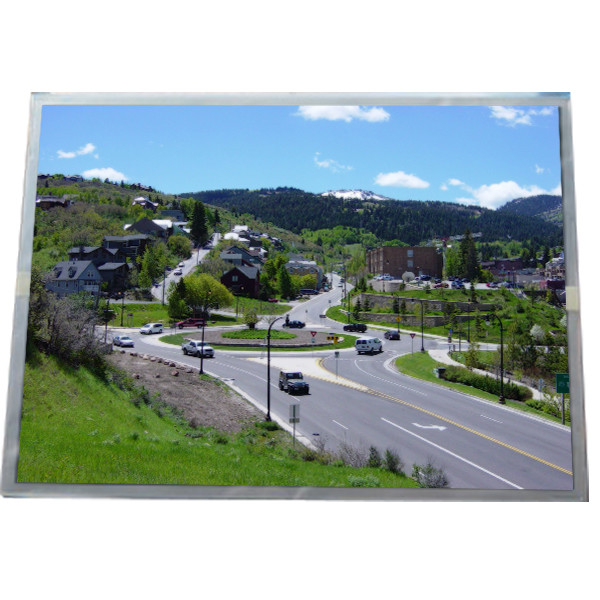

LB104S01-TL04 10.4 inch Industrial LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB104S01-TL04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB104S01-TL04 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Outline Dim.: | 224.5(W)×172(H)×7.7(D) Mm | Interface Type: | LVDS (1 Ch, 6-bit), 20 PinsConnector |
| Brightness: | 200 Cd/m² (Typ.) | Viewing Angle: | 65/65/45/55 (Min.)(CR≥10) |
| Weight: | 400/410g (Typ./Max.) | Application: | Industrial |
Product Description
LB104S01-TL04 10.4 inch Industrial LCD Screen Display
LB104S01-TL04 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LB104S01-TL04 |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.2(W)×161.8(H) mm |
| Outline Size | 224.5(W)×172(H)×7.7(D) mm |
| Brightness | 200 cd/m² (Typ.) |
| Viewing Angle | 65/65/45/55 (Min.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Weight | 400/410g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL , 20K hours , Without Driver |
| Touch Screen | 4-wire Resistive Touch |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| LB104S01-TL04 10.4 inch Industrial LCD Screen Display | |
LB104S01-TL04 LCD Panel Shipping and Package :
LB104S01-TL04 LCD Screen Reminder:
We would like to bring to your attention an important aspect regarding your purchase: Our listed price does not include any customs tax or fees applicable in the destination country. It's essential to be aware that when your goods undergo clearance at customs in the destination country, you may be required to pay certain taxes or fees as per the laws and regulations governing imports in that specific location.
Customs procedures and associated charges vary from one country to another, and it's crucial to acquaint yourself with the regulations enforced by the customs authority in your destination country. While we strive to provide transparency regarding our pricing, please note that any customs taxes or fees incurred upon importation are the responsibility of the buyer.
We advise you to consult with your local customs office or relevant authorities to gain clarity on the applicable duties and taxes before placing your order. This proactive approach ensures a smooth and hassle-free importation process, preventing any unexpected surprises upon the arrival of your goods.
LB104S01-TL04 LCD Screen Warning:
*Excluding installation guidelines, we do not assume any responsibility for any damage caused by the installation of this accessory. Please ensure that you understand how to install before subscribing. Thank you for your understanding!
*We simply cannot guarantee that you will receive tablet compatible content,
*If you do not accept A+compatible touch screen digitizers, but their flexible cable numbers are different, such as our title/description/connected photos already out of the market, please do not purchase, thank you!
We test all products before sending. But we cannot control everything, the screen is easily damaged during transportation. Therefore, please test the product before installation. If you find any issues, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service or refund service. We are not responsible for any issues that may arise during the installation process.
LB104S01-TL04 LCD Panel FAQ :
Q: What happen if the lcd panel LB104S01-TL04 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about LB104S01-TL04 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order LB104S01-TL04 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order LG LB104S01-TL04 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
