LCD Screen Display Panel
>

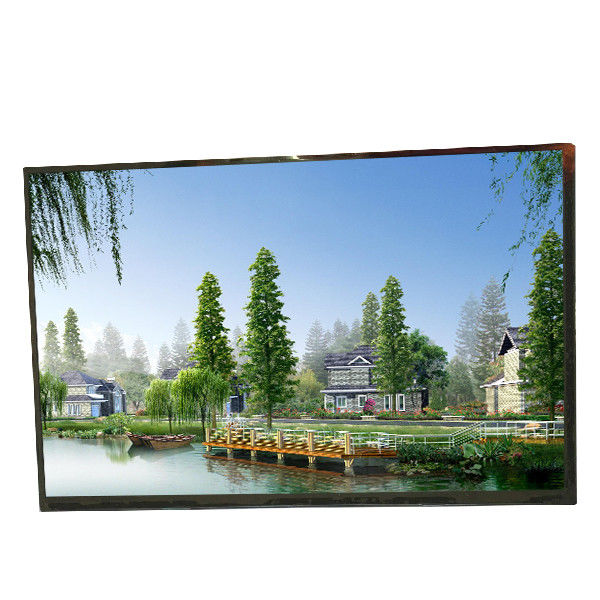

B101EAN01.6 10.1 inch LVDS 800:1 LCD Screen Panel

B101EAN01.6 10.1 inch LVDS 800:1 LCD Screen Panel

Brand Name: AUO
Model Number: B101EAN01.6
MOQ: 1pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
B101EAN01.6
Diagonal Size:
10.1"
Resolution:
1280(RGB)×800, WXGA 149PPI
Brightness:
400 Cd/m² (Typ.)
Contrast Ratio:
800:1 (Typ.) (TM)
Response Time:
30 (Typ.)(Tr+Td)
Designed For:
Pad & Tablet
Input Voltage:
3.3V (Typ.)
Supply Ability:
100000 Unit/Units per Month
Product Description

B101EAN01.6 10.1 inch LVDS 800:1 LCD Screen Panel



B101EAN01.6 LCD Panel Product details :



Brand AUO
Model P/N B101EAN01.6
Diagonal Size 10.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×800, WXGA 149PPI
Pixel Format RGB Vertical Stripe
Active Area 216.96(W)×135.6(H) mm
Bezel Opening -
Outline Dim. 227.72(W)×147.8(H)×4.6(D) mm
Luminance 400 cd/m² (Typ.)
View Direction Symmetry
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M 50% NTSC
Weight 140g (Max.)
Frame Rate 60Hz
Treatment Glare (Haze 0%), Hard coating (3H)
Contrast Ratio 800:1 (Typ.) (TM)
Response Time 30 (Typ.)(Tr+Td)
Operating Mode AHVA, Normally Black, Transmissive
Light Source WLED [6S4P] , 15K hours , W/O Driver
Designed For Pad & Tablet
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit)36 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
B101EAN01.6 10.1 inch LVDS 800:1 LCD Screen Panel



B101EAN01.6 LCD Display - Extremely Important Information:



Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.



Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.



100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.



For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.



B101EAN01.6 LCD Panel Shipping and Package :

B101EAN01.6 10.1 inch LVDS 800:1 LCD Screen Panel 0

B101EAN01.6 LCD Display SHIPPING :



We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .



The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.


B101EAN01.6 LCD Display Warranty:



Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.



Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.



However, it is imperative to ensure that the returned product is unused and free from any man-made damages.



Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.



Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.



B101EAN01.6 LCD Panel FAQ :



Q: Do you accept the sample order?

A: Yes , sample order is welcome.



Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.



Q: How long will I receive my goods of lcd B101EAN01.6 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: When will my order B101EAN01.6 ship?

A: The order are shipped within 1-2 working days after received the payment.
