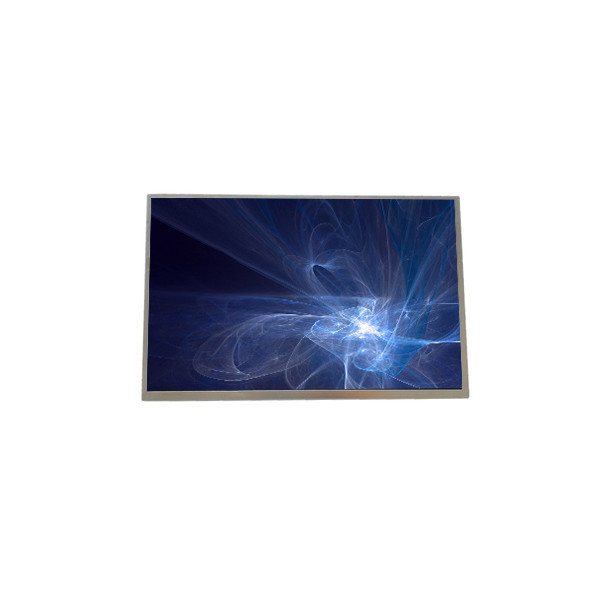

B101EW05 V6 10.1 inch LVDS 1300:1 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EW05 V6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101EW05 V6 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Brightness: | 350 (Typ.)(cd/m²) |
| Contrast Ratio: | 1300:1 (Typ.) (TM) | Response Time: | 25 (Typ.)(Tr+Td) |
| Designed For: | Pad & Tablet | Signal Type: | LVDS (1 Ch, 6-bit), 40 Pins Connector |
Product Description
B101EW05 V6 10.1 inch LVDS 1300:1 LCD Screen Panel
B101EW05 V6 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B101EW05 V6 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.76(W)×139.00(H) mm |
| Outline(mm) | 229.46(W)×149.2(H)×5.2(D) |
| Luminance | 350 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K 45% NTSC |
| Mass | 180g (Max.) |
| Refresh Rate | 60Hz |
| Treatment | Hard coating (3H), Reflection 1.5% (Max.) |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Work Mode | MVA, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Pad & Tablet |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B101EW05 V6 10.1 inch LVDS 1300:1 LCD Screen Panel | |
B101EW05 V6 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
B101EW05 V6 LCD Panel Shipping and Package :
B101EW05 V6 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
B101EW05 V6 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
B101EW05 V6 LCD Panel FAQ :
Q: When will my order B101EW05 V6 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd B101EW05 V6 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
