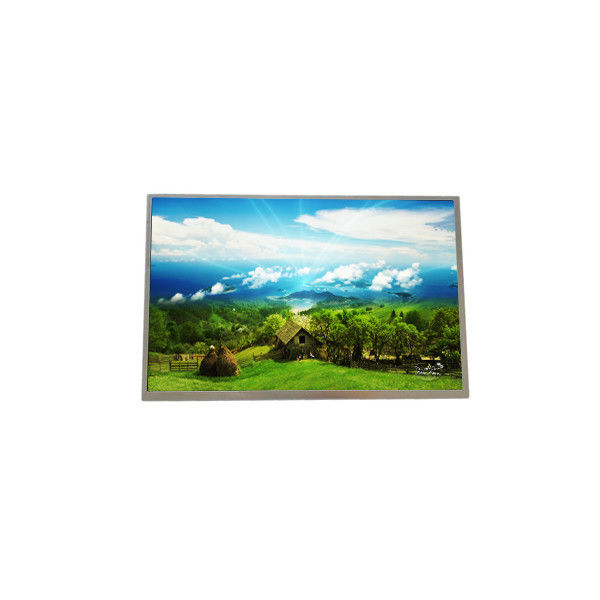

B101EW06 V0 10.1 inch LVDS 1500:1 LCD Screen Display

Brand Name:	AUO
Model Number:	B101EW06 V0
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B101EW06 V0

Diagonal Size:

10.1"

Resolution:

1280(RGB)×800, WXGA 149PPI

Brightness:

300 Cd/m² (Typ.)

Contrast Ratio:

1500:1 (Typ.) (TM)

Response Time:

25 (Typ.)(Tr+Td)

Designed For:

Pad & Tablet

Signal Type:

LVDS (1 Ch, 6-bit), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

B101EW06 V0 10.1 inch LVDS 1500:1 LCD Screen Display

B101EW06 V0 LCD Panel Product details :

Brand	AUO
Model P/N	B101EW06 V0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	-
Outline Dim.	229.46(H)×149.2(V)×6(D)mm
Treatment	Hard coating, Antireflection
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	MVA, Normally Black, Transmissive
Support Color	262K 45%NTSC
Light Source	WLED, 15K hours, With LED Driver
Weight	180g (Max.)
Designed For	Pad & Tablet
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
B101EW06 V0 10.1 inch LVDS 1500:1 LCD Screen Display

B101EW06 V0 LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

B101EW06 V0 LCD Panel Shipping and Package :

B101EW06 V0 10.1 inch LVDS 1500:1 LCD Screen Display 0

B101EW06 V0 LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.

B101EW06 V0 LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

B101EW06 V0 LCD Panel FAQ :

Q: When will my order B101EW06 V0 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel B101EW06 V0 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
