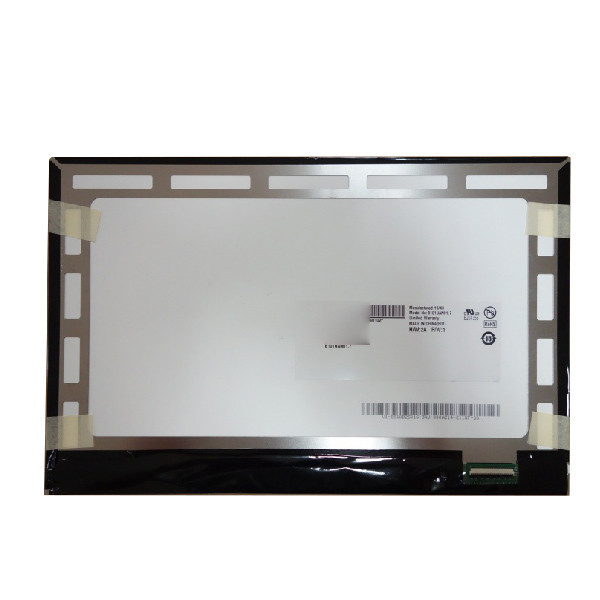

B101UAN01.7 HW3A 10.1 inch 16.7M 50%NTSC LCD Screen Display

Brand Name:	AUO
Model Number:	B101UAN01.7 HW3A
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B101UAN01.7 HW3A

Diagonal Size:

10.1"

Resolution:

1920(RGB)×1200, WUXGA 224PPI

Brightness:

400 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

15/10 (Typ.)(Tr/Td)

Designed For:

Pad & Tablet

Signal Type:

LVDS (2 Ch, 8-bit), 50 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

B101UAN01.7 HW3A 10.1 inch 16.7M 50%NTSC LCD Screen Display

B101UAN01.7 HW3A LCD Panel Product details :

Brand	AUO
Model P/N	B101UAN01.7 HW3A
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 224PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.81(W)×135.5(H) mm
Bezel Opening	-
Outline Size	227.72(W)×147.8(H)×5.35(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 50%NTSC
Frequency	60Hz
Weight	135g (Max.)
Surface	Glare (Haze 0%)
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Lamp Type	WLED , 12K hours , With LED Driver
Touch Screen	Without
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 34 pinsConnector
Input Voltage	3.7V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
B101UAN01.7 HW3A 10.1 inch 16.7M 50%NTSC LCD Screen Display

B101UAN01.7 HW3A LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

B101UAN01.7 HW3A LCD Panel Shipping and Package :

B101UAN01.7 HW3A 10.1 inch 16.7M 50%NTSC LCD Screen Display 0

B101UAN01.7 HW3A LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.

B101UAN01.7 HW3A LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

B101UAN01.7 HW3A LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel B101UAN01.7 HW3A I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order B101UAN01.7 HW3A ship?

A: The order are shipped within 1-2 working days after received the payment.
