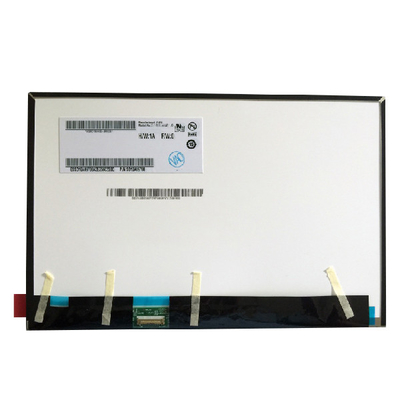

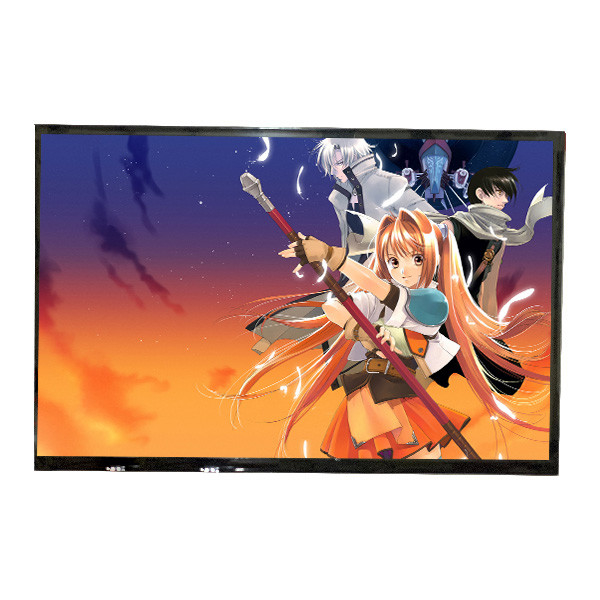

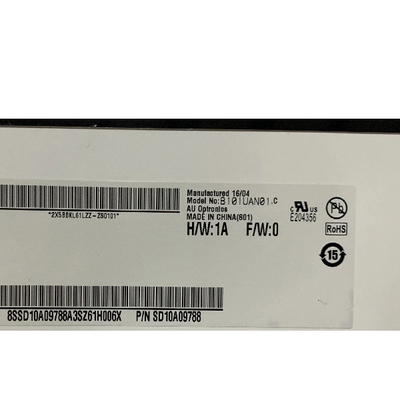

B101UAN01.C 10.1 inch 16.7M 50%NTSC LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101UAN01.C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101UAN01.C | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 224PPI | Brightness: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Response Time: | 15/10 (Typ.)(Tr/Td) |
| Designed For: | Pad & Tablet | Signal Type: | EDP (2 Lanes), EDP1.3, 30 PinsConnector |
Product Description
B101UAN01.C 10.1 inch 16.7M 50%NTSC LCD Screen Display
B101UAN01.C LCD Panel Product details :
| Brand | AUO |
| Model P/N | B101UAN01.C |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.81(W)×135.5(H) mm |
| Bezel Opening | - |
| Outline Size | 229.71(W)×150.3(H)×4.6(D) mm |
| Brightness | 400 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 50%NTSC |
| Frequency | 60Hz |
| Weight | 115g (Max.) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| Application | Pad & Tablet |
| Signal Interface | eDP (2 Lanes), eDP1.3, 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| B101UAN01.C 10.1 inch 16.7M 50%NTSC LCD Screen Display | |
B101UAN01.C LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
B101UAN01.C LCD Panel Shipping and Package :
B101UAN01.C LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
B101UAN01.C LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
B101UAN01.C LCD Panel FAQ :
Q: When will my order B101UAN01.C ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel B101UAN01.C I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
