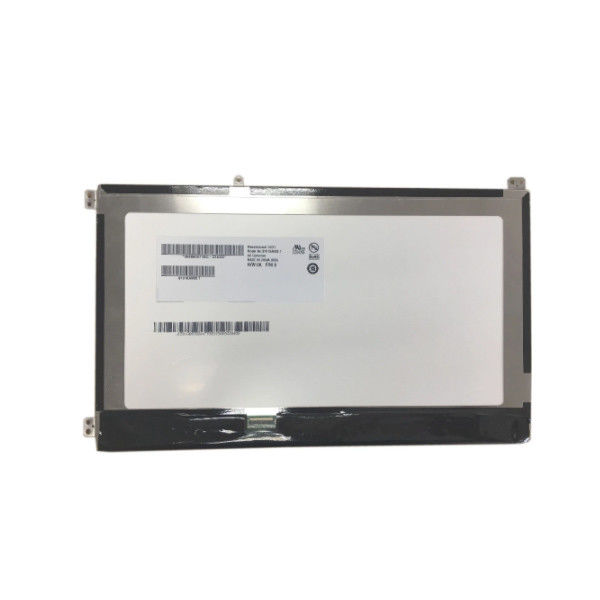

B101XAN02.1 LCD Screen Display 1366*768 10.1 inch

Brand Name:	AUO
Model Number:	B101XAN02.1
MOQ:	1pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B101XAN02.1

Diagonal Size:

10.1"

Resolution:

1366(RGB)×768, WXGA 155PPI

Luminance:

250 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

15/10 (Typ.)(Tr/Td)

Designed For:

Pad & Tablet

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

B101XAN02.1 LCD Screen Display 1366*768 10.1 inch

B101XAN02.1 LCD Panel Product details :

Brand	AUO
Model P/N	B101XAN02.1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.341(W)×125.568(H) mm
Bezel Opening	-
Outline Size	235.01(W)×139.25(H)×4.7(D) mm
Brightness	250 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 50%NTSC
Frequency	60Hz
Weight	150g (Typ.)
Surface	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	15/10 (Typ.)(Tr/Td)
Lamp Type	7S4P WLED , 10K hours , Without Driver
Touch Screen	Without
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 39 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
B101XAN02.1 LCD Screen Display 1366*768 10.1 inch

B101XAN02.1 LCD Display - Extremely Important Information:

Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.

Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.

100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.

For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.

B101XAN02.1 LCD Panel Shipping and Package :

B101XAN02.1 LCD Screen Display 1366*768 10.1 inch 0

B101XAN02.1 LCD Display SHIPPING :

We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .

The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )

Each order will be attached a tracking number and we will send to you.

B101XAN02.1 LCD Display Warranty:

Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.

Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.

However, it is imperative to ensure that the returned product is unused and free from any man-made damages.

Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.

Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.

B101XAN02.1 LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel B101XAN02.1 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
