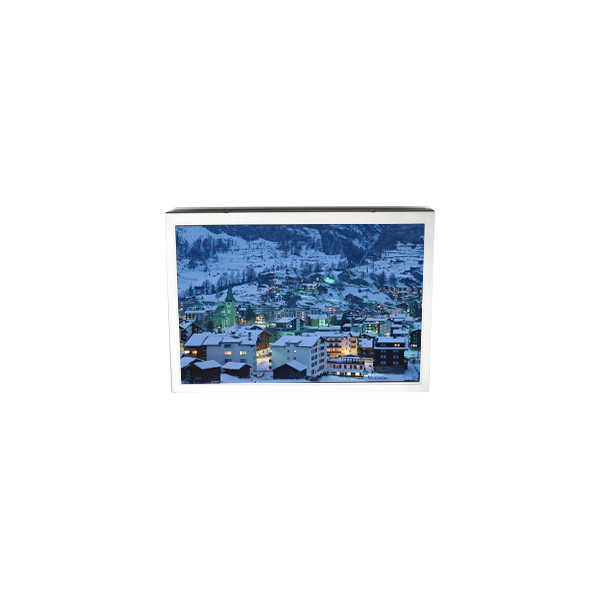

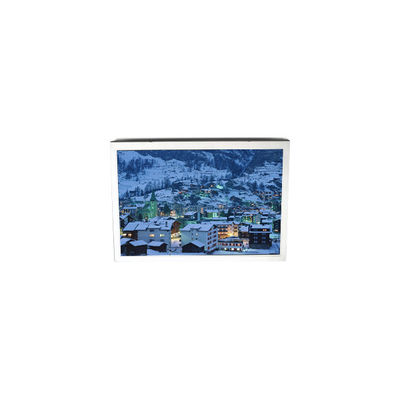

LB070WV1-TD08 Original 7.0 inch 800*480 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB070WV1-TD08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB070WV1-TD08 | Interface Type: | Parallel RGB (1 Ch, 6-bit), 50 PinsConnector |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 152.4(W)×91.44(H) Mm | Outline Dim.: | 167(W)×104.6(H)×5.8(D) Mm |
| Luminance: | 220 Cd/m² (Typ.) | Operating Mode: | TN, Normally White, Transmissive |
| Response Time: | 10/15 (Typ.)(Tr/Td) | Input Voltage: | 3.3V (Typ.)(VCC) |
Product Description
LB070WV1-TD08 Original 7.0 inch 800*480 LCD Display Screen
LB070WV1-TD08 LCD Panel Product details :
| Brand | LG |
| Model P/N | LB070WV1-TD08 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.6(W)×94.6(H) mm |
| Outline Size | 167(W)×104.6(H)×5.8(D) mm |
| Brightness | 220 cd/m² (Typ.) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K 45%NTSC |
| Frequency | 60Hz |
| Weight | 125g (Typ.) |
| Surface | Antiglare |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Lamp Type | 1 pcs CCFL , 20K hours , Without Driver |
| Touch Screen | Without |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pinsConnector |
| Input Voltage | 3.3V (Typ.)(VCC) |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
| LB070WV1-TD08 Original 7.0 inch 800*480 LCD Display Screen | |
Important Note Regarding LB070WV1-TD08 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
