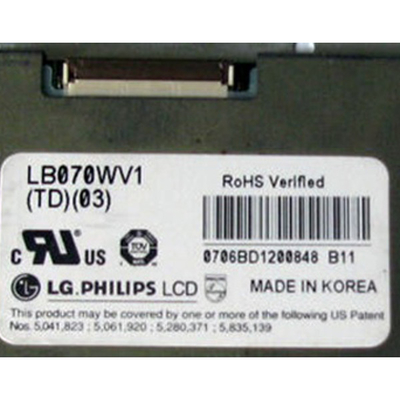

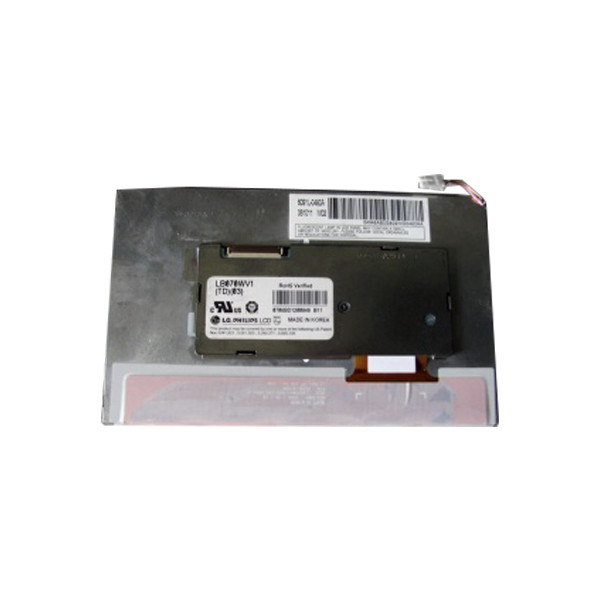

LB070WV1-TD03 7.0 inch LCD Screen Display 800*480 LCD Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB070WV1-TD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB070WV1-TD03 | Resolution: | 800(RGB)×480, WVGA 133PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline(mm): | 167(H)×103.7(V)×20.5(D) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Interface Type: | Parallel RGB (1 Ch, 6-bit), 40 PinsConnector |
Product Description
LB070WV1-TD03 7.0 inch LCD Screen Display 800*480 LCD Panel Module
LB070WV1-TD03 LCD Panel Product details :
| Brand | LG |
| Model P/N | LB070WV1-TD03 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.6(W)×94.6(H) mm |
| Outline Dim. | 167(H)×103.7(V)×20.5(D) mm |
| Treatment | Antiglare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 43%NTSC |
| Light Source | CCFL [1 pcs], 20K hours, W/O Driver |
| Weight | 205g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.)(VCC) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| LB070WV1-TD03 7.0 inch LCD Screen Display 800*480 LCD Panel Module | |
Precautions for Purchasing the LB070WV1-TD03 LCD Panel:
Authenticity and Quality Assurance:
Our LCD screen is an original replacement specifically designed for GPS systems.
We maintain sufficient stock ensuring availability.
Each screen undergoes rigorous testing to ensure optimal performance.
Upon shipment, you'll receive a tracking number to monitor delivery progress.
Swift Processing and Dispatch:
Orders are processed promptly, with goods dispatched within 48 hours of payment completion.
Secure Packaging:
We prioritize the safe delivery of our products.
Each LCD screen is carefully packaged with multiple layers of protection:
Anti-static bag
Bubble bag
Carton
Installation Precautions:
Refrain from using adhesive to affix the screen until its functionality is confirmed.
We cannot accept returns or issue refunds for screens that have been glued in place.
Testing and Verification:
Before installation, conduct a comprehensive test of the LCD screen.
Record a video during testing to ensure proper functioning.
Installation should proceed only after confirming the screen's operational status.
In case of any malfunction, provide us with the test video to facilitate resolution.
Power Off Before Handling:
Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.
Failure to do so may result in malfunction or damage.
Handle with Care:
LCD screens are delicate and susceptible to damage.
Exercise caution during testing and installation processes to prevent mishaps.
These precautions are designed to ensure a smooth and satisfactory experience with our LCD panel.
LB070WV1-TD03 LCD Panel Shipping and Package :
Return & Refund Policy for LB070WV1-TD03 LCD Panel:
Initial Steps:
Begin by verifying the tracking information provided on the designated tracking website to monitor the shipment's progress.
Contact Us:
Reach out to us via message, email, or through the trade manager platform to initiate the return or refund process.
Inspection:
Thoroughly examine both the package and the item upon receipt to ensure there are no discrepancies or damages.
Important Note:
Kindly be aware that defects resulting from human error, damage occurring after use, water damage, and similar issues are not covered under our guarantee policy.
LB070WV1-TD03 LCD Panel FAQ :
Q: How can I trace my order of LB070WV1-TD03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LB070WV1-TD03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LB070WV1-TD03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LB070WV1-TD03?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
