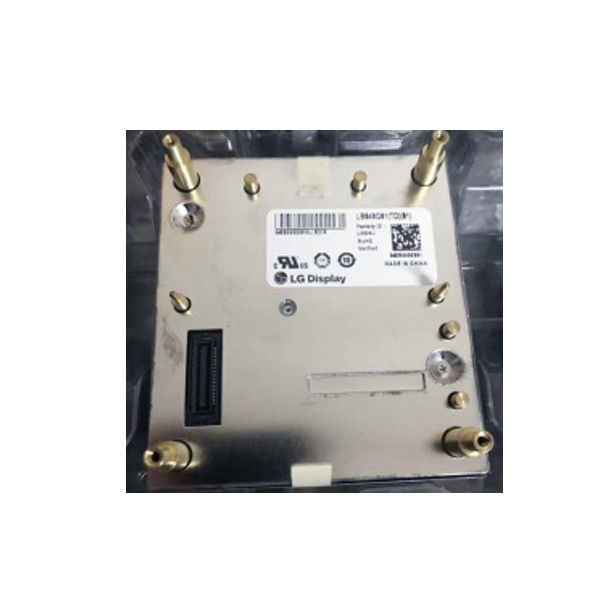

LB065WQ3-TD01 6.5 inch 400*240 LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB065WQ3-TD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB065WQ3-TD01 | Resolution: | 400(RGB)×240, WQVGA 72PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 143.4(W)×79.326(H) Mm |
| Outline Dim.: | 155.3(W)×91(H)×10.3(D) Mm | Luminance: | 450 Cd/m² (Typ.) |
| Operating Mode: | TN, Normally White, Transmissive | Color Depth: | 262K 45% NTSC |
| Weight: | 165/170g (Typ./Max.) | Interface Type: | CMOS/TTL (1 Ch, 6-bit)40 Pins Connector |
Product Description
LB065WQ3-TD01 6.5 inch 400*240 LCD Panel Screen
LB065WQ3-TD01 LCD Panel Product details :
| Brand | LG |
| Model P/N | LB065WQ3-TD01 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×240, WQVGA 72PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 143.4(W)×79.326(H) mm |
| Bezel Opening | 146.6(W)×82.0(H) mm |
| Outline Dim. | 155.3(W)×91(H)×10.3(D) mm |
| Luminance | 450 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Weight | 165/170g (Typ./Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [1 pcs] , 20K hours , W/O Driver |
| Designed For | Automotive Display,Digital Photo Frame,Portable DVD Player,Video Door Phone |
| Touch Panel | Without |
| Interface Type | CMOS/TTL (1 ch, 6-bit)40 pins Connector |
| Power Supply | 3.3V (Typ.)(VCC) |
| Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 85 °C; Vibration Level: 2.9G (28.4 m/s²) |
| LB065WQ3-TD01 6.5 inch 400*240 LCD Panel Screen | |
Precautions for Purchasing the LB065WQ3-TD01 LCD Panel:
Authenticity and Quality Assurance:
Our LCD screen is an original replacement specifically designed for GPS systems.
We maintain sufficient stock ensuring availability.
Each screen undergoes rigorous testing to ensure optimal performance.
Upon shipment, you'll receive a tracking number to monitor delivery progress.
Swift Processing and Dispatch:
Orders are processed promptly, with goods dispatched within 48 hours of payment completion.
Secure Packaging:
We prioritize the safe delivery of our products.
Each LCD screen is carefully packaged with multiple layers of protection:
Anti-static bag
Bubble bag
Carton
Installation Precautions:
Refrain from using adhesive to affix the screen until its functionality is confirmed.
We cannot accept returns or issue refunds for screens that have been glued in place.
Testing and Verification:
Before installation, conduct a comprehensive test of the LCD screen.
Record a video during testing to ensure proper functioning.
Installation should proceed only after confirming the screen's operational status.
In case of any malfunction, provide us with the test video to facilitate resolution.
Power Off Before Handling:
Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.
Failure to do so may result in malfunction or damage.
Handle with Care:
LCD screens are delicate and susceptible to damage.
Exercise caution during testing and installation processes to prevent mishaps.
These precautions are designed to ensure a smooth and satisfactory experience with our LCD panel.
