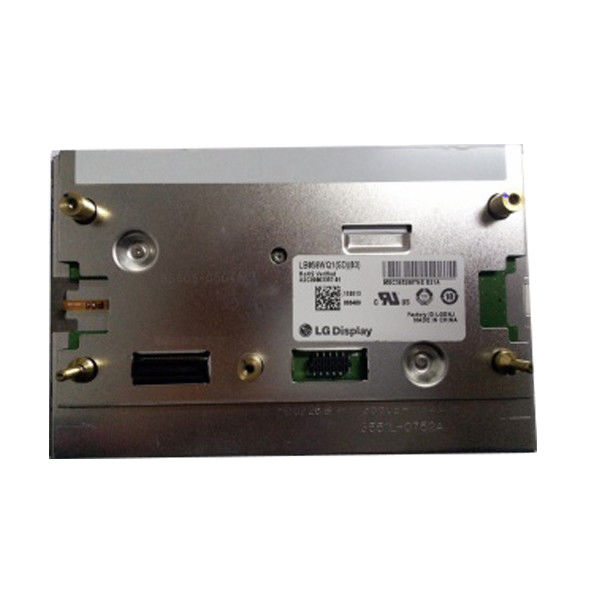

LB065WQ2-A11B LCD Display Screen 6.5 inch 400*234 LCD Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LB065WQ2-A11B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB065WQ2-A11B | Resolution: | 400(RGB)×234 71PPI |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Active Area: | 143.4(W)×79.326(H) Mm |
| Outline Dim.: | 155.5 × 89.8× 6.3 (H×V×D) | Luminance: | 400 Cd/m² (Typ.) |
| Operating Mode: | TN, Normally White, Transmissive | Color Depth: | Full Color 45%NTSC |
| Weight: | 125g (Typ.) | Interface Type: | TFT Specific Analog RGB, 32 Pins FPC |
Product Description
LB065WQ2-A11B LCD Display Screen 6.5 inch 400*234 LCD Panel Module
LB065WQ2-A11B LCD Panel Product details :
| Brand | LG |
| Model P/N | LB065WQ2-A11B |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×234 71PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 143.4(W)×79.326(H) mm |
| Bezel Opening | 145.8(W)×81.7(H) mm |
| Outline(mm) | 155.5 × 89.8× 6.3 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/45/50 (Typ.)(CR≥10) |
| Response | 10/30 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color 45%NTSC |
| Backlight | 1 pcsCCFL, 12K hours, No Driver |
| Mass | 125g (Typ.) |
| Used for | Digital Photo Frame,Portable DVD Player,Video Door Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB, 32 pins FPC |
| Voltage Supply | 5/13/5/-10/-10.9/-16V (Typ.)(VSH/VGH/VGLAC/VGLDC/VCC/VSS) |
| Max. Ratings | Storage Temp.: -10 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LB065WQ2-A11B LCD Display Screen 6.5 inch 400*234 LCD Panel Module | |
Precautions for Purchasing the LB065WQ2-A11B LCD Panel:
Authenticity and Quality Assurance:
Our LCD screen is an original replacement specifically designed for GPS systems.
We maintain sufficient stock ensuring availability.
Each screen undergoes rigorous testing to ensure optimal performance.
Upon shipment, you'll receive a tracking number to monitor delivery progress.
Swift Processing and Dispatch:
Orders are processed promptly, with goods dispatched within 48 hours of payment completion.
Secure Packaging:
We prioritize the safe delivery of our products.
Each LCD screen is carefully packaged with multiple layers of protection:
Anti-static bag
Bubble bag
Carton
Installation Precautions:
Refrain from using adhesive to affix the screen until its functionality is confirmed.
We cannot accept returns or issue refunds for screens that have been glued in place.
Testing and Verification:
Before installation, conduct a comprehensive test of the LCD screen.
Record a video during testing to ensure proper functioning.
Installation should proceed only after confirming the screen's operational status.
In case of any malfunction, provide us with the test video to facilitate resolution.
Power Off Before Handling:
Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.
Failure to do so may result in malfunction or damage.
Handle with Care:
LCD screens are delicate and susceptible to damage.
Exercise caution during testing and installation processes to prevent mishaps.
These precautions are designed to ensure a smooth and satisfactory experience with our LCD panel.
