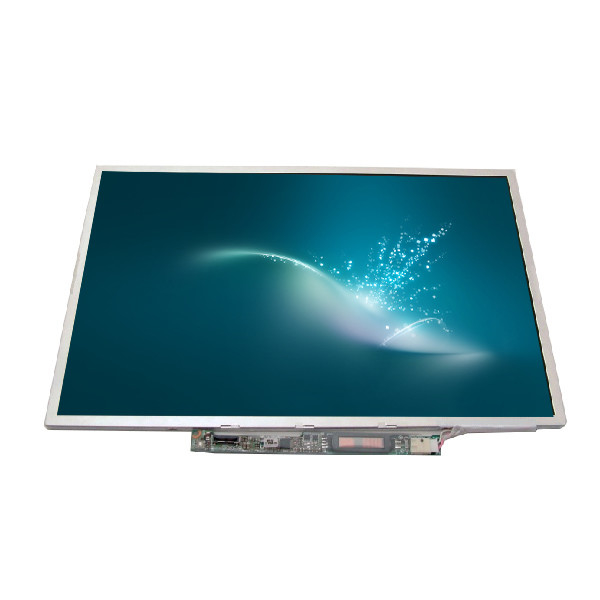

B121EW02 V1 12.1 inch TFT-LCD screen 1280*800 For Laptop
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B121EW02 V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B121EW02 V1 | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 400 : 1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B121EW02 V1 12.1 inch TFT-LCD screen 1280*800 For Laptop
B121EW02 V1 LCD Panel Product details :
Brand | AUO |
Model P/N | B121EW02 V1 |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 124PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 261.12(W)×163.2(H) mm |
Bezel Opening | 264.12(W)×166.2(H) mm |
Outline(mm) | 275.8 × 177.9× 5.5 (H×V×D) |
Treatment | Antiglare (Haze 25%), Hard coating (2H), Reflection 4.3% (Typ.) |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (TM) |
Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
Response | 10/15 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 44%NTSC |
Backlight | 1 pcsCCFL, No Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -40 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
B121EW02 V1 12.1 inch TFT-LCD screen 1280*800 For Laptop |
B121EW02 V1 LCD Panel Shipping and Package :
B121EW02 V1 LCD Panel FAQ :
Q: When will my order B121EW02 V1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd B121EW02 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
