B121EW03 V0 12.1 inch TFT-LCD screen 1280*800 For Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B121EW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B121EW03 V0 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B121EW03 V0 12.1 inch TFT-LCD screen 1280*800 For Laptop
B121EW03 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B121EW03 V0 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.12(W)×166.2(H) mm |
| Outline(mm) | 275.8(W)×190.5(H)×5.2(D) |
| Luminance | 200 (Typ.)(cd/m²) |
| Viewing Angle | 40/40/20/40 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 44% NTSC |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Backlight | 1 pcs CCFL, No Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
| B121EW03 V0 12.1 inch TFT-LCD screen 1280*800 For Laptop | |

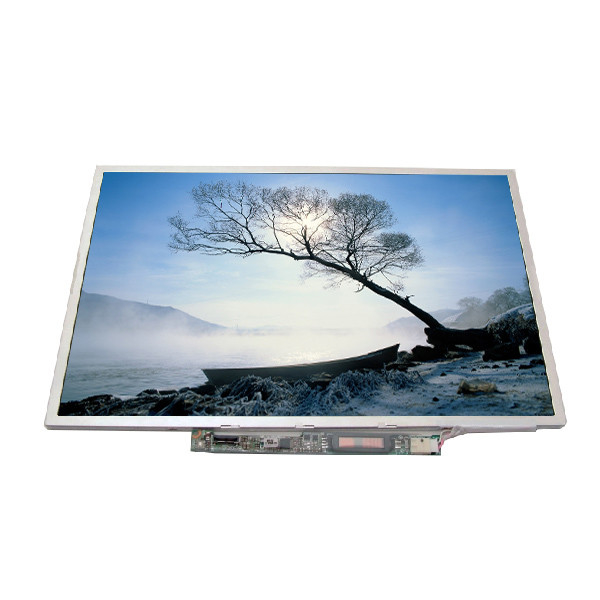

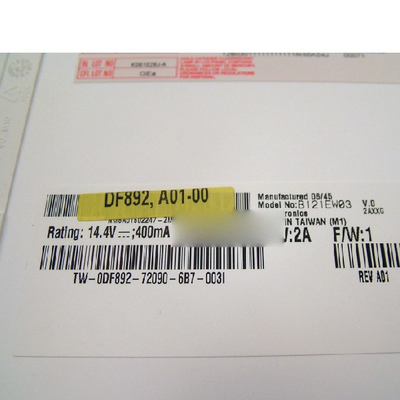

B121EW03 V0 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
B121EW03 V0 LCD Panel Shipping and Package :
B121EW03 V0 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
B121EW03 V0 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
B121EW03 V0 LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd B121EW03 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order B121EW03 V0 ship?
A: The order are shipped within 1-2 working days after received the payment.
