B121EW04 V2 12.1 inch 1280*800 TFT-LCD screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B121EW04 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B121EW04 V2 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B121EW04 V2 12.1 inch 1280*800 TFT-LCD screen Display
B121EW04 V2 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B121EW04 V2 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | - |
| Outline Dim. | 293.6(H)×180.1(V)×6.05(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED, With LED Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Digitizer & Capacitive Touch |
| Interface Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B121EW04 V2 12.1 inch 1280*800 TFT-LCD screen Display | |

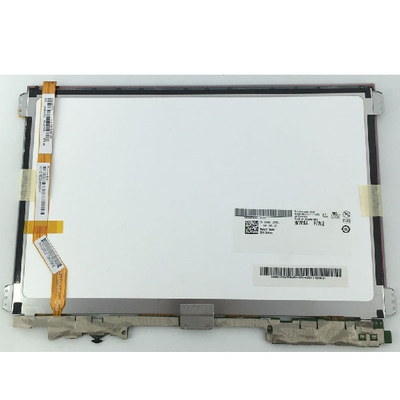

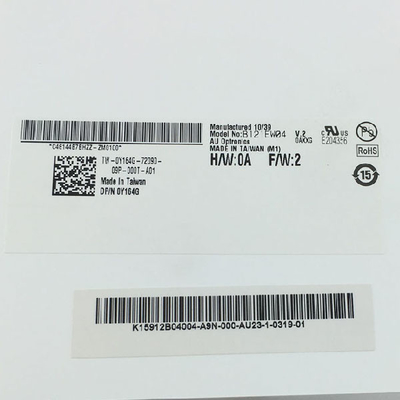

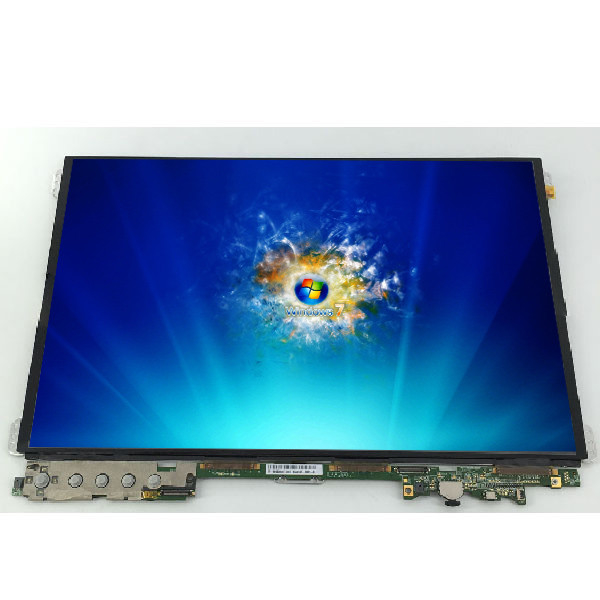

B121EW04 V2 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
B121EW04 V2 LCD Panel Shipping and Package :
B121EW04 V2 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
B121EW04 V2 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
B121EW04 V2 LCD Panel FAQ :
Q: Do you accept the B121EW04 V2 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
