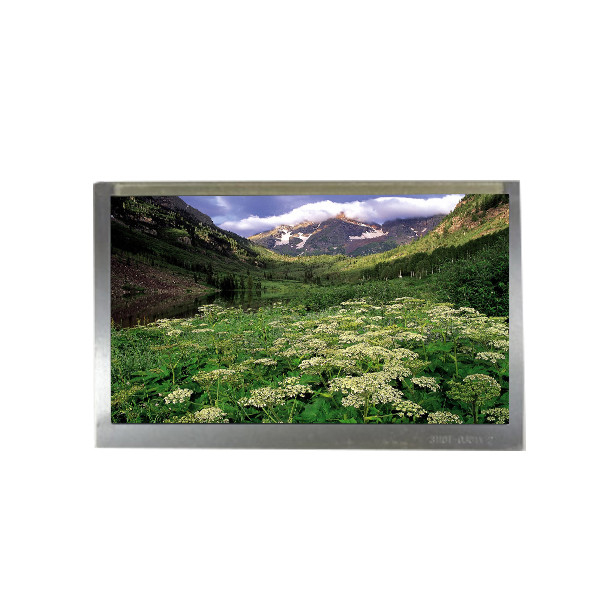

LB050WQ2-TD02 5.0 Inch LCD Panel 480*272 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LB050WQ2-TD02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LB050WQ2-TD02 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480×272(RGB), WQVGA 110PPI | Designed For: | Portable Navigation、MP3 PMP |
| Luminance: | 400 Cd/m² (Typ.) | Active Area: | 110.736(W)×62.424(H) Mm |
| Outline Dim.: | 124×77.2×4.6 (H×V×D) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Interface Type: | Parallel RGB (1 Ch, 8-bit), FPC45 Pins | Weight: | 89.0g (Typ.) |
Product Description
LB050WQ2-TD02 5.0 Inch LCD Panel 480*272 LCD Display
LB050WQ2-TD02 LCD Panel Product details :
| Brand | LG |
| Model P/N | LB050WQ2-TD02 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480×272(RGB), WQVGA 110PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 110.736(W)×62.424(H) mm |
| Bezel Opening | 113.72(W)×65.4(H) mm |
| Outline (mm) | 124×77.2×4.6 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 46%NTSC |
| Backlight | 6S2PWLED, No Driver |
| Mass | 89.0g (Typ.) |
| Used for | Portable Navigation,MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch, F/G |
| Signal Type | Parallel RGB (1 ch, 8-bit), FPC45 pins |
| Voltage Supply | 2.5/3.3V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| LB050WQ2-TD02 5.0 Inch LCD Panel 480*272 LCD Display | |
LB050WQ2-TD02 LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LB050WQ2-TD02 LCD Panel Shipping and Package :
SHIPPING Information for LB050WQ2-TD02 LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LB050WQ2-TD02 LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LB050WQ2-TD02 LCD Panel FAQ :
Q: If I order LB050WQ2-TD02 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LB050WQ2-TD02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders for LB050WQ2-TD02 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LB050WQ2-TD02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
