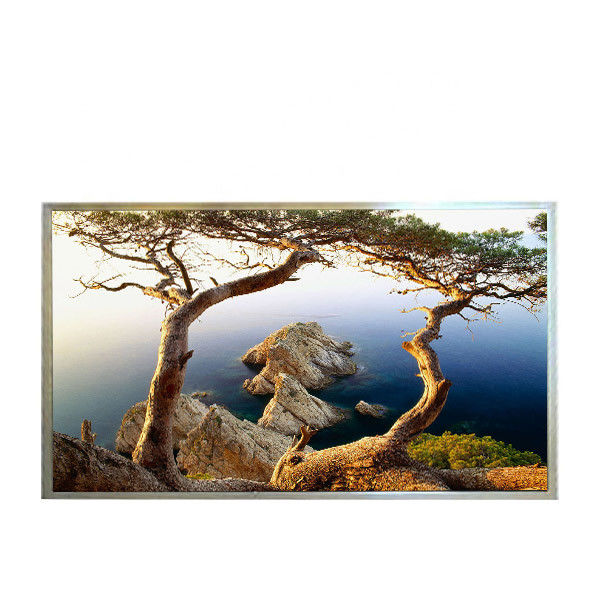

B121EW09 V3 HW0A 1280*800 12.1 inch TFT-LCD screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B121EW09 V3 HW0A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B121EW09 V3 HW0A | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
Brightness: | 260 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B121EW09 V3 HW0A 1280*800 12.1 inch TFT-LCD screen Panel
B121EW09 V3 HW0A LCD Panel Product details :
Brand | AUO |
Model P/N | B121EW09 V3 HW0A |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 124PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 261.12(W)×163.2(H) mm |
Bezel Opening | 263.93(W)×166.5(H) mm |
Outline Size | 275.8(W)×178.1(H)×5.5(D) mm |
Surface | Antiglare |
Brightness | 260 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 16 (Typ.)(Tr+Td) |
Display Colors | 262K 45%NTSC |
Lamp Type | 7S6PWLED, 12K hours, With LED Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 40 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 65 °C |
B121EW09 V3 HW0A 1280*800 12.1 inch TFT-LCD screen Panel |
B121EW09 V3 HW0A LCD Panel Shipping and Package :
B121EW09 V3 HW0A LCD Panel FAQ :
Q: Do you accept the B121EW09 V3 HW0A sample order?
A: Yes , sample order is welcome.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
