B125HAN03.0 12.5 inch 1920*1080 LCD Panel LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B125HAN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B125HAN03.0 | Diagonal Size: | 12.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 176PPI | Active Area: | 276.48(W)×155.52(H) Mm |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B125HAN03.0 12.5 inch 1920*1080 LCD Panel LCD Screen
B125HAN03.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | B125HAN03.0 |
| Diagonal Size | 12.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 176PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 276.48(W)×155.52(H) mm |
| Bezel Opening | - |
| Outline Dim. | 282.4(W)×172.22(H)×1.95(D) mm |
| Treatment | Hard coating |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.2M 72%NTSC |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop,Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes), eDP1.2, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B125HAN03.0 12.5 inch 1920*1080 LCD Panel LCD Screen | |

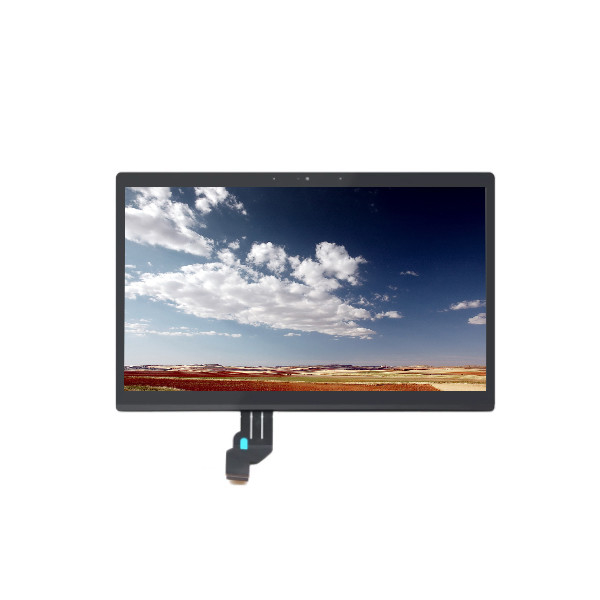

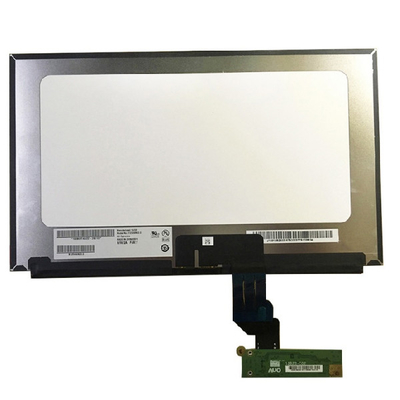

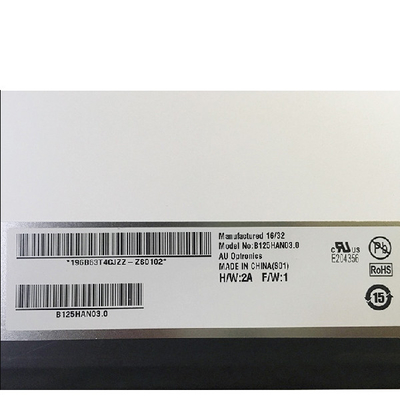

B125HAN03.0 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
B125HAN03.0 LCD Panel Shipping and Package :
B125HAN03.0 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
B125HAN03.0 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
B125HAN03.0 LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of product?
A: NEW Product warranty is 90days , the secondhand goods is 60days.
