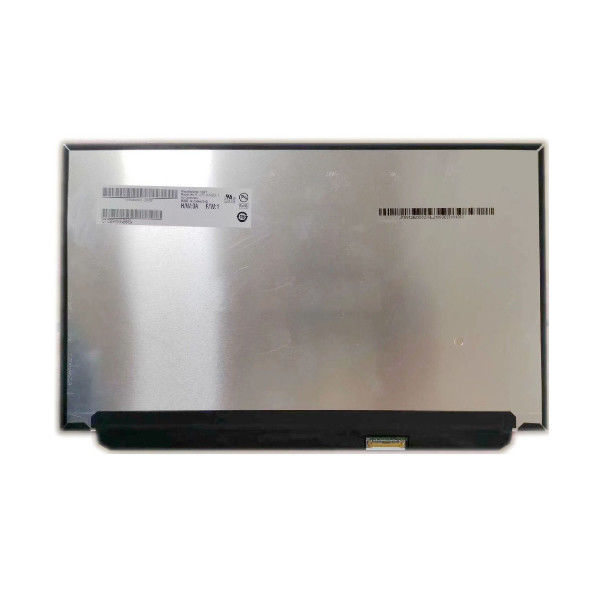

B125HAN03.1 12.5 inch 1920*1080 LCD Panel LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B125HAN03.1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B125HAN03.1 | Diagonal Size: | 12.5" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 176PPI | Active Area: | 276.48(W)×155.52(H) Mm |
Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B125HAN03.1 12.5 inch 1920*1080 LCD Panel LCD Screen
B125HAN03.1 LCD Panel Product details :
Brand | AUO |
Model P/N | B125HAN03.1 |
Diagonal Size | 12.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 176PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 276.48(W)×155.52(H) mm |
Bezel Opening | - |
Outline Dim. | 282.4(H)×179.32(V)×2.5(D)mm |
Treatment | Glare (Haze 0%) |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 27 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | AHVA, Normally Black, Transmissive |
Support Color | 16.2M 99%sRGB |
Light Source | WLED, 15K hours, With LED Driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (2 Lanes), eDP1.3, 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B125HAN03.1 12.5 inch 1920*1080 LCD Panel LCD Screen |
B125HAN03.1 LCD Panel Shipping and Package :
B125HAN03.1 LCD Panel FAQ :
Q: How can I trace my order of B125HAN03.1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B125HAN03.1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B125HAN03.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B125HAN03.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
