B125XTN01.0 HW1A 12.5 inch 1366*768 LCD Panel LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B125XTN01.0 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B125XTN01.0 HW1A | Diagonal Size: | 12.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 125PPI | Active Area: | 276.615(W)×155.52(H) Mm |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B125XTN01.0 HW1A 12.5 inch 1366*768 LCD Panel LCD Screen
B125XTN01.0 HW1A LCD Panel Product details :
| Brand | AUO |
| Model P/N | B125XTN01.0 HW1A |
| Diagonal Size | 12.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 276.615(W)×155.52(H) mm |
| Bezel Opening | - |
| Outline Size | 300.4(W)×181.4(H)×3(D) mm |
| Surface | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Display Colors | 262K 45%NTSC |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (1 Lane), eDP1.2, 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| B125XTN01.0 HW1A 12.5 inch 1366*768 LCD Panel LCD Screen | |

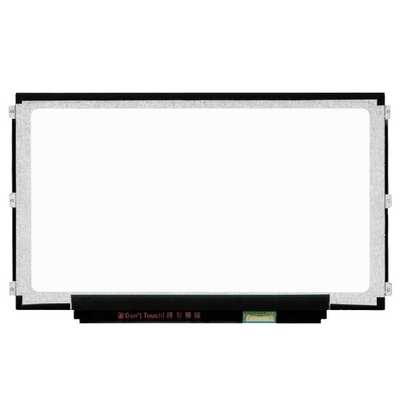

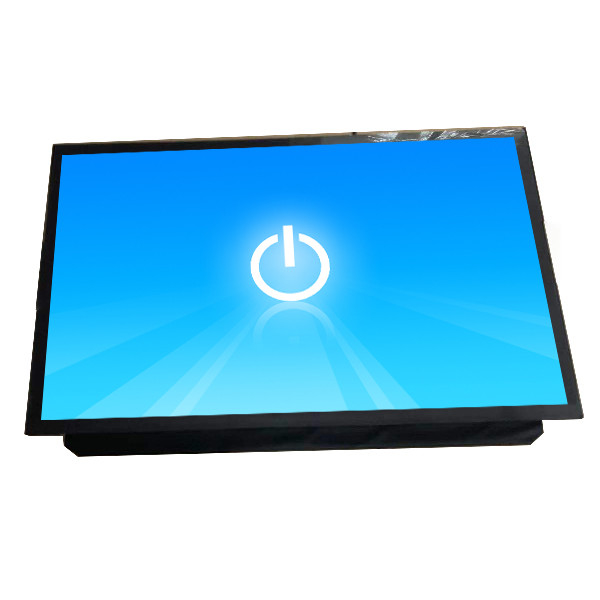

B125XTN01.0 HW1A LCD Screen Photos :
