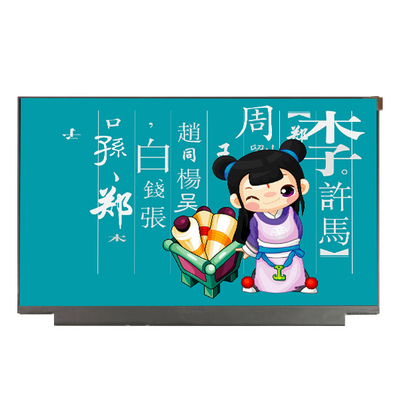

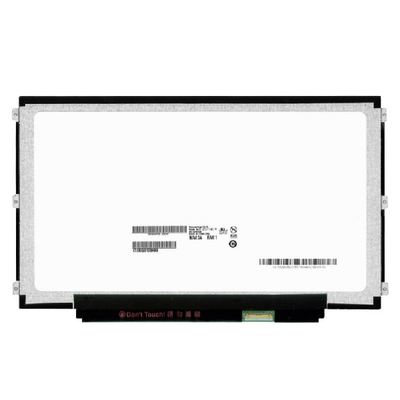

B125XTN01.0 HW3A 12.5 inch 1366*768 LCD Panel LCD Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B125XTN01.0 HW3A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B125XTN01.0 HW3A | Diagonal Size: | 12.5" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 125PPI | Active Area: | 276.615(W)×155.52(H) Mm |
Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B125XTN01.0 HW3A 12.5 inch 1366*768 LCD Panel LCD Screen
B125XTN01.0 HW3A LCD Panel Product details :
Brand | AUO |
Model P/N | B125XTN01.0 HW3A |
Diagonal Size | 12.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 125PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 276.615(W)×155.52(H) mm |
Bezel Opening | - |
Outline Dim. | 300.4(H)×181.4(V)×3(D) mm |
Treatment | Antiglare |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 16 (Typ.)(Tr+Td) |
Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45%NTSC |
Light Source | WLED, 15K hours, With LED Driver |
Form Style | Slim (PCBA Flat, T≤3.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | eDP (1 Lane), eDP1.2, 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B125XTN01.0 HW3A 12.5 inch 1366*768 LCD Panel LCD Screen |
B125XTN01.0 HW3A LCD Panel Shipping and Package :
B125XTN01.0 HW3A LCD Panel FAQ :
Q: Can I pay my order of B125XTN01.0 HW3A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B125XTN01.0 HW3A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of B125XTN01.0 HW3A ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of B125XTN01.0 HW3A ?
A: We accept T/T , Paypal , western union .
