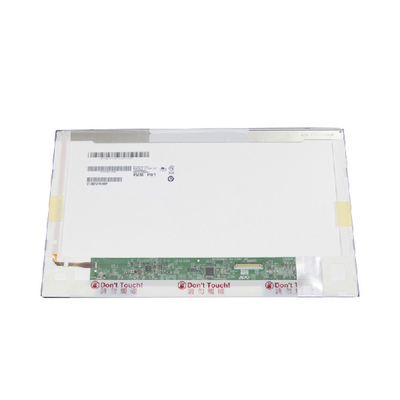

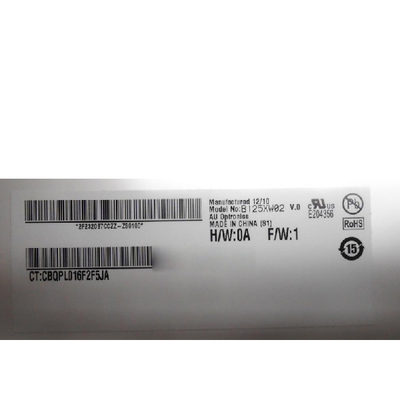

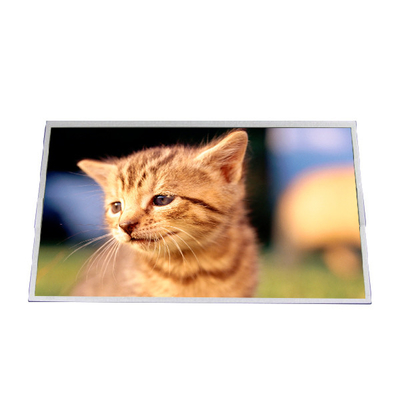

B125XW02 V0 13.0 inch 1366*768 TFT-LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B125XW02 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B125XW02 V0 | Diagonal Size: | 12.5" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 125PPI | Active Area: | 276.615(W)×155.52(H) Mm |
Luminance: | 200 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B125XW02 V0 13.0 inch 1366*768 TFT-LCD Screen Panel
B125XW02 V0 LCD Panel Product details :
Brand | AUO |
Model P/N | B125XW02 V0 |
Diagonal Size | 12.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 125PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 276.615(W)×155.52(H) mm |
Bezel Opening | 281.25(W)×160.35(H) mm |
Outline Dim. | 291.7(H)×173.7(V)×5.2(D) mm |
Treatment | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 400:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 6/2 (Typ.)(Tr/Td) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 45%NTSC |
Light Source | WLED, 12K hours, With LED Driver |
Form Style | Wedge (PCBA Bent, T≥5.2mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B125XW02 V0 13.0 inch 1366*768 TFT-LCD Screen Panel |
B125XW02 V0 LCD Panel Shipping and Package :
B125XW02 V0 LCD Panel FAQ :
Q: Do you accept the B125XW02 V0 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
