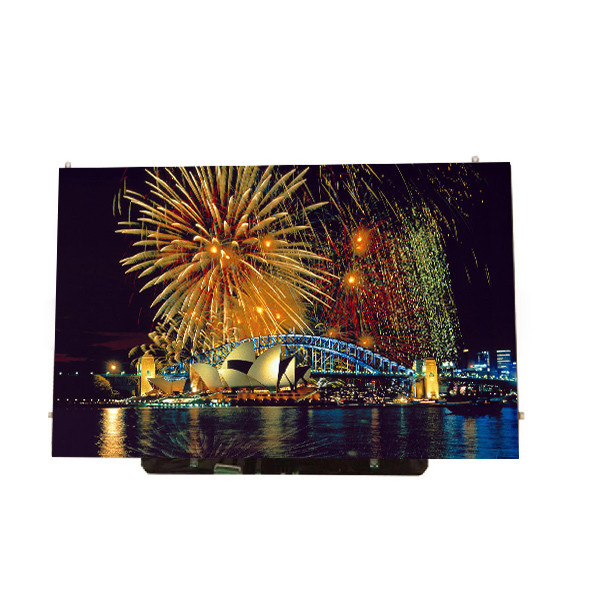

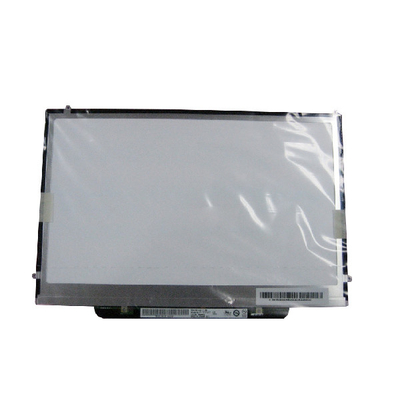

B133EW03 V3 1280*800 13.3 inch TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133EW03 V3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133EW03 V3 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 113PPI | Active Area: | 286.08(W)×178.8(H) Mm |
Luminance: | 280 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B133EW03 V3 1280*800 13.3 inch TFT-LCD Screen Display
B133EW03 V3 LCD Panel Product details :
Brand | AUO |
Model P/N | B133EW03 V3 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 113PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 286.08(W)×178.8(H) mm |
Bezel Opening | - |
Brightness | 280 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 20 (Typ.)(Tr+Td) |
Display Colors | 262K 50%NTSC |
Lamp Type | 6 stringsWLED, 10K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
B133EW03 V3 1280*800 13.3 inch TFT-LCD Screen Display |
B133EW03 V3 LCD Panel Shipping and Package :
B133EW03 V3 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of B133EW03 V3?
Q: How to order lcd panel B133EW03 V3 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
