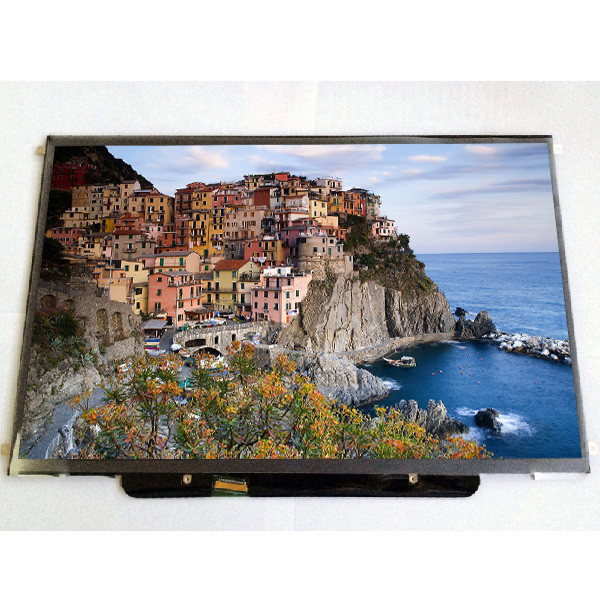

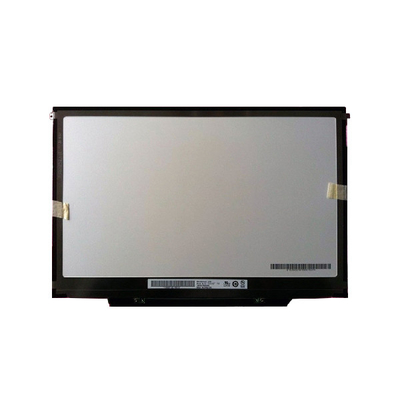

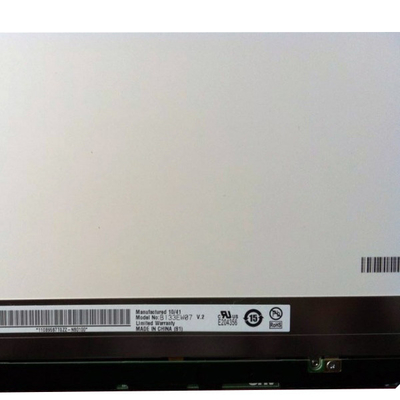

B133EW07 V2 1280*800 13.3 inch TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133EW07 V2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133EW07 V2 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 113PPI | Active Area: | 286.08(W)×178.8(H) Mm |
Luminance: | 330 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Designed For: | Laptop | Power Supply: | 3.3V (Typ.) |
Product Description
B133EW07 V2 1280*800 13.3 inch TFT-LCD Screen Display
B133EW07 V2 LCD Panel Product details :
Brand | AUO |
Model P/N | B133EW07 V2 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 113PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 286.08(W)×178.8(H) mm |
Bezel Opening | - |
Outline Dim. | 307.44(W)×203.2(H)×3.68(D) mm |
Treatment | Glare (Haze 0%), Hard coating (3H) |
Luminance | 330 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 16 (Typ.)(Tr+Td) |
Viewing Angle | 70/70/45/55 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 98%sRGB |
Light Source | WLED, 10K hours, W/O Driver |
Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
B133EW07 V2 1280*800 13.3 inch TFT-LCD Screen Display |
B133EW07 V2 LCD Panel Shipping and Package :
B133EW07 V2 LCD Panel FAQ :
Q: Can I pay my order of B133EW07 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of B133EW07 V2 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods B133EW07 V2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of B133EW07 V2?
A: We accept T/T , Paypal , western union .
