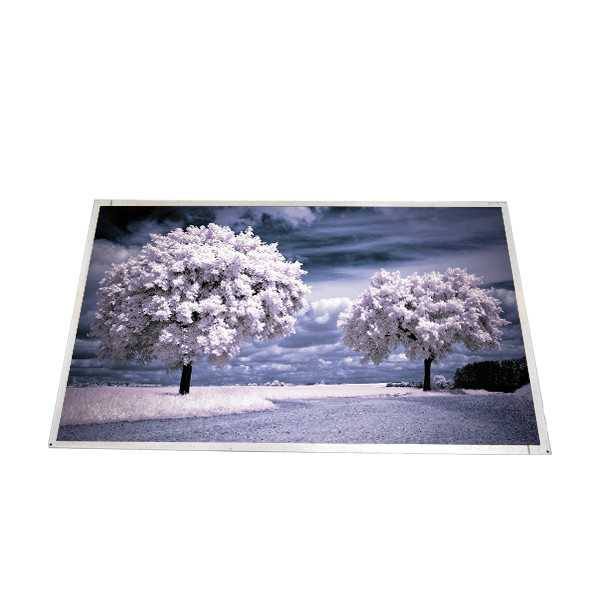

B156XTN07.0 HWCA 1366*768 LCD Display Panel 15.6 inch LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XTN07.0 HWCA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XTN07.0 HWCA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Designed For: | Laptop | Outline Dim.: | 359.5(W)×223.8(H) ×3.4(D) Mm |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Signal Type: | EDP (1 Lane) , 40 Pins Connector | Max. Ratings: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
B156XTN07.0 HWCA 1366*768 LCD Display Panel 15.6 inch LCD Screen Module
B156XTN07.0 HWCA LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156XTN07.0 HWCA |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 359.5(W)×223.8(H) ×3.4(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Weight | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
B156XTN07.0 HWCA LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
B156XTN07.0 HWCA LCD Panel Shipping and Package :
B156XTN07.0 HWCA LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
B156XTN07.0 HWCA LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
B156XTN07.0 HWCA LCD Panel FAQ :
Q: Can I pay my order of B156XTN07.0 HWCA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B156XTN07.0 HWCA ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B156XTN07.0 HWCA ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
