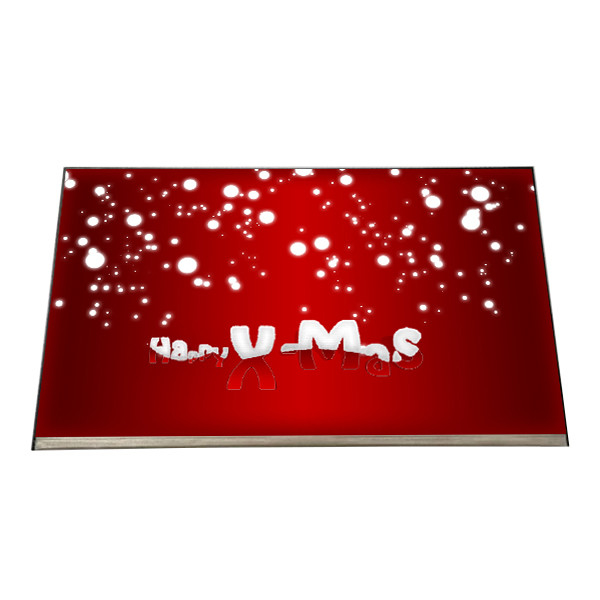

B133HAK02.1 LCD Screen 13.3 inch 1920*1080 LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAK02.1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAK02.1 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.472(W)×165.078(H) Mm |
Luminance: | 300 (Typ.)(cd/m²) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Color Depth: | 16.7M 72% NTSC | Contrast Ratio: | 700:1 (Typ.) (TM) |
Used For: | Laptop | Voltage Supply: | 3.3V (Typ.) |
Product Description
B133HAK02.1 LCD Screen 13.3 inch 1920*1080 LCD Display
B133HAK02.1 LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAK02.1 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.76(W)×165.24(H) mm |
Bezel Opening | - |
Outline(mm) | 300.26(W)×177.55(H)×4.5(D) |
Luminance | 300 (Typ.)(cd/m²) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 16.7M 72% NTSC |
Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
Refresh Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 700 : 1 (Typ.) (TM) |
Work Mode | AHVA, Normally Black, Transmissive |
Response | 25 (Typ.)(Tr+Td) ms |
Backlight | WLED , 15K hours , With LED Driver |
Used for | Laptop |
Touchscreen | On-Cell Touch, I²C/USB |
Signal Type | eDP (2 Lanes), eDP1.3, 40 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
B133HAK02.1 LCD Screen 13.3 inch 1920*1080 LCD Display |

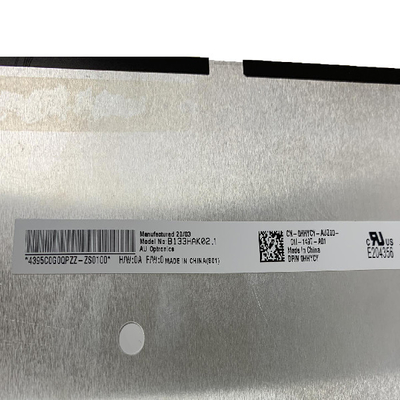

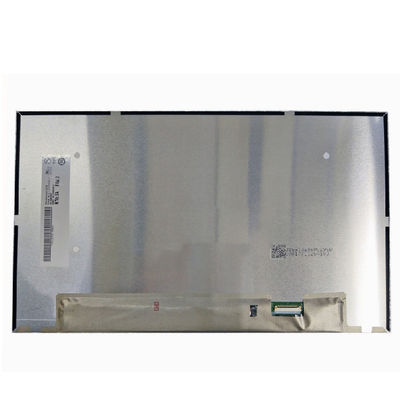

B133HAK02.1 LCD Screen details :
B133HAK02.1 LCD Panel Shipping and Package :
B133HAK02.1 LCD Panel FAQ :
Q: How to order AUO TFT-LCD B133HAK02.1 ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order AUO B133HAK02.1 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the LCD Screen B133HAK02.1 received can't work ?
A: Our B133HAK02.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Do you accept the sample of B133HAK02.1 ?
A: Yes , Welcome !
