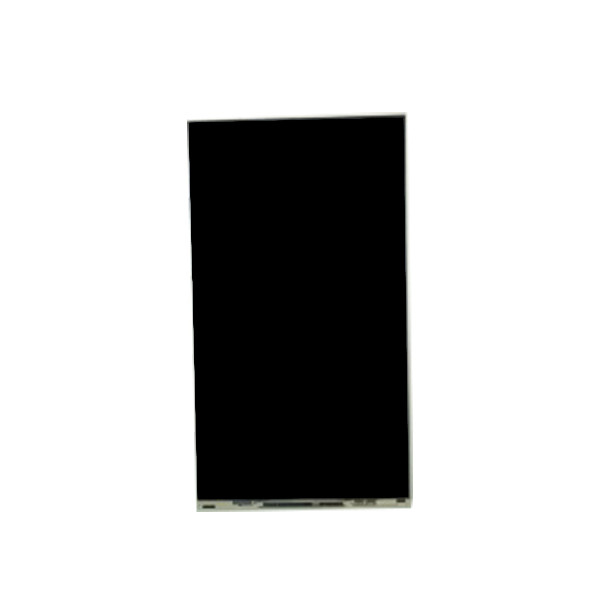

H599DAX01.2 6.0 inch 1080*2160 TFT LCD Touch Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H599DAX01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H599DAX01.2 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Resolution: | 1080(RGB)×2160 403PPI | Active Area: | 68.04(W)×136.08(H) Mm |
| Designed For: | Mobile Phone | Outline Dim.: | 69.44(W)×141.33(H)×0.3(D) Mm |
| Contrast Ratio: | 1500:1 (Typ.) (TM) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Signal Type: | MIPI | Max. Ratings: | Operating Temp.: -30 ~ 75 °C ; Storage Temp.: -40 ~ 85 °C |
Product Description
H599DAX01.2 6.0 inch 1080*2160 TFT LCD Touch Panel Display
H599DAX01.2 LCD Panel Product details :
| Brand | AUO |
| Model P/N | H599DAX01.2 |
| Diagonal Size | 6.0" |
| Panel Type | LTPS TFT-LCD, CELL, COG |
| Resolution | 1080(RGB)×2160 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline Size | 69.44(W)×141.33(H)×0.3(D) mm |
| Surface | With Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Glass Depth | - |
| Transmissivity | 4.5% (Typ.)(with APCF) |
| Display Colors | 16.7M 82%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | In-Cell Touch |
| Driver IC | COG Built-in TD4310 |
| Panel Weight | 7.45g (Typ.) |
| Application | Mobile Phone |
| Signal Interface | MIPI |
| Environment | Operating Temp.: -30 ~ 75 °C ; Storage Temp.: -40 ~ 85 °C |
H599DAX01.2 LCD Screen Warranty:
H599DAX01.2 LCD Panel Shipping and Package :
H599DAX01.2 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
H599DAX01.2 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
H599DAX01.2 LCD Panel FAQ :
Q: Can I pay my order of H599DAX01.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of H599DAX01.2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of H599DAX01.2 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
