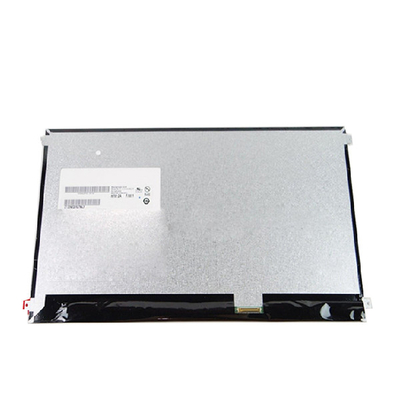

B133HAN02.3 LCD Screen 13.3 inch 1920*1080 LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAN02.3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAN02.3 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.472(W)×165.078(H) Mm |
Luminance: | 400 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Color Depth: | 262K 99%sRGB | Contrast Ratio: | 700:1 (Typ.) (TM) |
Used For: | Laptop | Voltage Supply: | 3.3V (Typ.) |
Product Description
B133HAN02.3 LCD Screen 13.3 inch 1920*1080 LCD Display
B133HAN02.3 LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAN02.3 1 Compatible |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.472(W)×165.078(H) mm |
Bezel Opening | - |
Outline Size | 317.2(W)×180.44(H)×5(D) mm |
Brightness | 400 cd/m² (Typ.) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Best View on | Symmetry |
Display Colors | 262K 99%sRGB |
Frequency | 60Hz |
Shape Style | Slim (PCBA Bent, T≤3.0mm) |
Surface | Antiglare, Hard coating (2H) |
Contrast Ratio | 700:1 (Typ.) (TM) |
Display Mode | AHVA, Normally Black, Transmissive |
Response Time | 25 (Typ.)(Tr+Td) |
Lamp Type | WLED , 15K hours , With LED Driver |
Touch Screen | Without |
Application | Laptop |
Signal Interface | eDP (2 Lanes), 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
B133HAN02.3 LCD Screen 13.3 inch 1920*1080 LCD Display |
B133HAN02.3 LCD Screen details :
B133HAN02.3 LCD Panel Shipping and Package :
B133HAN02.3 LCD Panel FAQ :
Q: Do you accept the sample of B133HAN02.3 ?
A: Yes , Welcome !
Q: How to order AUO TFT-LCD B133HAN02.3 ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order AUO B133HAN02.3 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the LCD Screen B133HAN02.3 received can't work ?
A: Our B133HAN02.3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
