B133HAN03.0 LCD Screen 13.3 inch 1920*1080 LCD Display
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAN03.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAN03.0 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.472(W)×165.078(H) Mm |
Luminance: | 350 (Typ.)(cd/m²) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Color Depth: | 262K 52%NTSC | Contrast Ratio: | 700:1 (Typ.) (TM) |
Used For: | Laptop | Voltage Supply: | 3.3V (Typ.) |
Product Description

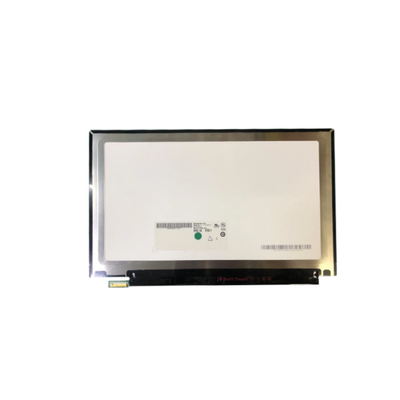

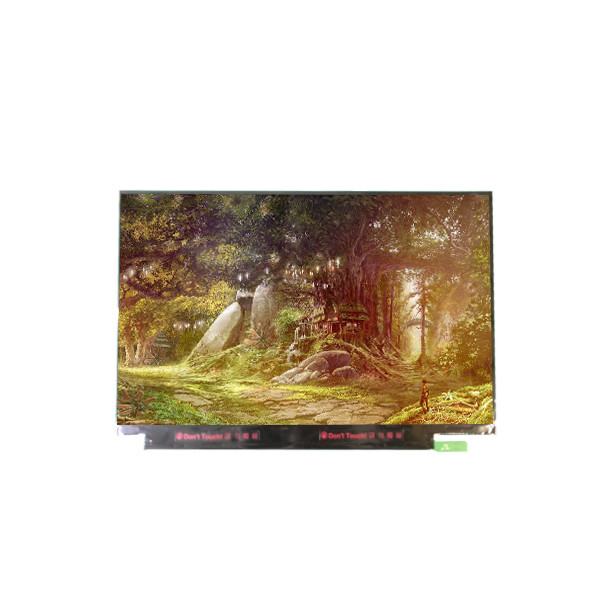

B133HAN03.0 LCD Screen 13.3 inch 1920*1080 LCD Display
B133HAN03.0 LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAN03.0 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.472(W)×165.078(H) mm |
Bezel Opening | - |
Outline(mm) | 304.9(W)×190.5(H)×2.47(D) |
Luminance | 350 (Typ.)(cd/m²) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 262K 52% NTSC |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Refresh Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 700 : 1 (Typ.) (TM) |
Work Mode | AHVA, Normally Black, Transmissive |
Response | 25 (Typ.)(Tr+Td) ms |
Backlight | WLED , 15K hours , With LED Driver |
Used for | Laptop |
Touchscreen | Without |
Signal Type | eDP (2 Lanes), 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B133HAN03.0 LCD Screen 13.3 inch 1920*1080 LCD Display |

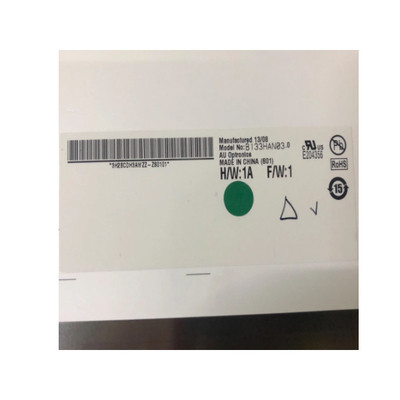

B133HAN03.0 LCD Screen details :
B133HAN03.0 LCD Panel Shipping and Package :
B133HAN03.0 LCD Panel FAQ :
Q: What happen if the LCD Screen B133HAN03.0 received can't work ?
A: Our B133HAN03.0 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Do you accept the sample of B133HAN03.0 ?
A: Yes , Welcome !
Q: How to order AUO TFT-LCD B133HAN03.0 ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order AUO B133HAN03.0 when shipping?
A: Yes, We can do it for you if you need.
