LCD Laptop Screen

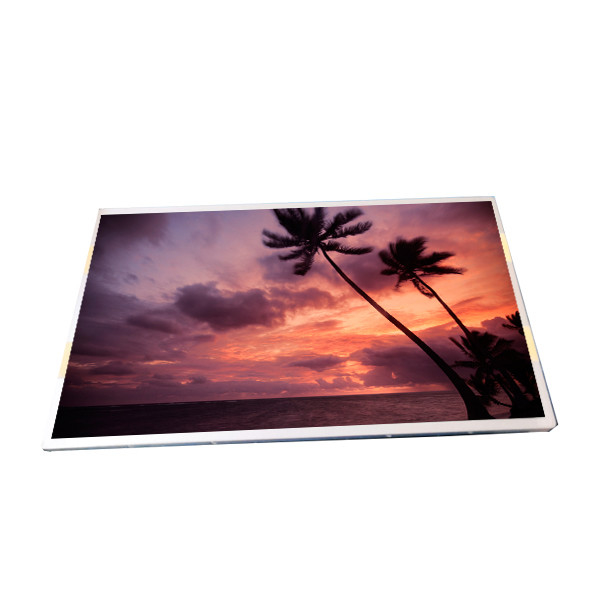

B116XAK01.0 HW2A 11.6 inch 1366*768 LCD Display Module

All Category

Floor Standing Digital Signage

B116XAK01.0 HW2A 11.6 inch 1366*768 LCD Display Module

Brand Name:	AUO
Model Number:	B116XAK01.0 HW2A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B116XAK01.0 HW2A

Diagonal Size:

11.6"

Resolution:

1366(RGB)×768, WXGA 135PPI

Active Area:

256.125(W)×144(H) Mm

Designed For:

Laptop

Outline Dim.:

278(W)×168.02(H)×3.2(D) Mm

Contrast Ratio:

800:1 (Typ.) (TM)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Signal Type:

EDP (1 Lane) , EDP1.2 40 Pins Connector

Max. Ratings:

Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

B116XAK01.0 HW2A 11.6 inch 1366*768 LCD Display Module

B116XAK01.0 HW2A LCD Panel Product details :

Brand	AUO
Model P/N	B116XAK01.0 HW2A
Diagonal Size	11.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 135PPI
Pixel Format	RGB Vertical Stripe
Active Area	256.125(W)×144(H) mm
Bezel Opening	-
Outline Dim.	278(W)×168.02(H)×3.2(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	27 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	262K 50% NTSC
Light Source	WLED , 15K hours , With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	On-Cell Touch, I²C
Interface Type	eDP (1 Lane) , eDP1.2 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

B116XAK01.0 HW2A LCD Screen FeedBack:

Customer satisfaction is very important to us. If you have any questions about your order, please contact us and we will do our best to satisfy you. Please do not leave negative feedback until we have resolved your issue. We guarantee that your issue will be resolved quickly.
As long as you are satisfied with your purchase, please leave us positive feedback. Your feedback is very important to us, and once we receive it, we will automatically leave you with positive feedback.

B116XAK01.0 HW2A LCD Panel Shipping and Package :

B116XAK01.0 HW2A 11.6 inch 1366*768 LCD Display Module 0

B116XAK01.0 HW2A LCD Screen International Orders:

The buyer assumes responsibility for all customs fees and import taxes associated with international orders.

International orders may experience extended delivery times due to customs processing delays.

When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.

B116XAK01.0 HW2A LCD Screen Contact Us:

If you have any questions, please contact us via email[ darian@yongs-hk.com ]Contact us. We usually reply within 12 hours on weekdays. We appreciate your patronage!

B116XAK01.0 HW2A LCD Panel FAQ :

Q: Can you test the lcd panel B116XAK01.0 HW2A before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order B116XAK01.0 HW2A ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order B116XAK01.0 HW2A ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd B116XAK01.0 HW2A ?

A: 90 days .
