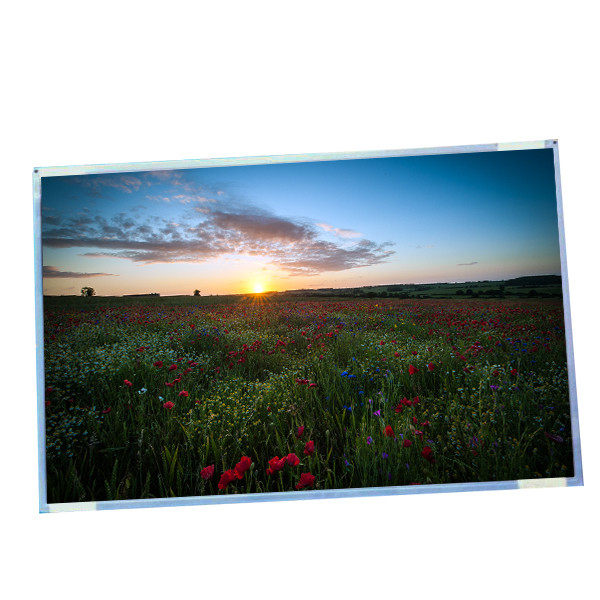

B156HAN06.2 HWBA LCD Display Panel 15.6 inch 1920*1080 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAN06.2 HWBA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAN06.2 HWBA | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Designed For: | Laptop | Outline Dim.: | 359.5(H)×223.8(V) ×3.4(D) Mm |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Signal Type: | EDP (2 Lanes) , 40 Pins Connector | Max. Ratings: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Product Description
B156HAN06.2 HWBA LCD Display Panel 15.6 inch 1920*1080 LCD Screen Module
B156HAN06.2 HWBA LCD Panel Product details :
| Brand | AUO |
| Model P/N | B156HAN06.2 HWBA |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Dim. | 359.5(H)×223.8(V) ×3.4(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
B156HAN06.2 HWBA LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
B156HAN06.2 HWBA LCD Panel Shipping and Package :
B156HAN06.2 HWBA LCD Screen about us:
YONGS focuses on the LCD module, LCD display, liquid crystal display and corresponding control panel for over 10 years.
Currently available in a variety of HD VGA DVI USB Control Board and related LCD screen.
To provide customers with LCD screen to the controller and the surrounding period of the solution.
B156HAN06.2 HWBA LCD Screen Returns:
B156HAN06.2 HWBA LCD Panel FAQ :
Q: Can I pay my goods B156HAN06.2 HWBA by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B156HAN06.2 HWBA ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for B156HAN06.2 HWBA ?
A: Of course!sample order is welcome !
Q: How to make payment for B156HAN06.2 HWBA ?
A: We accept T/T , Paypal , western union .
