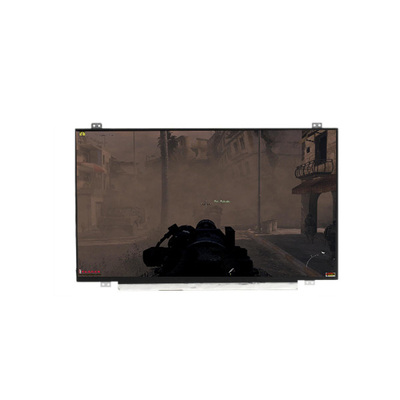

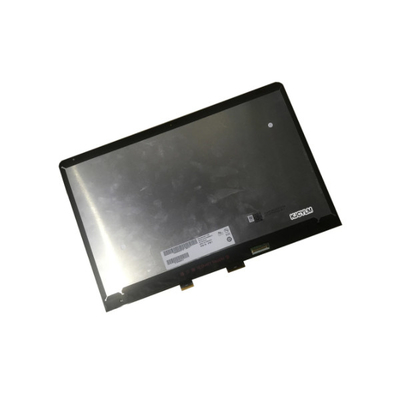

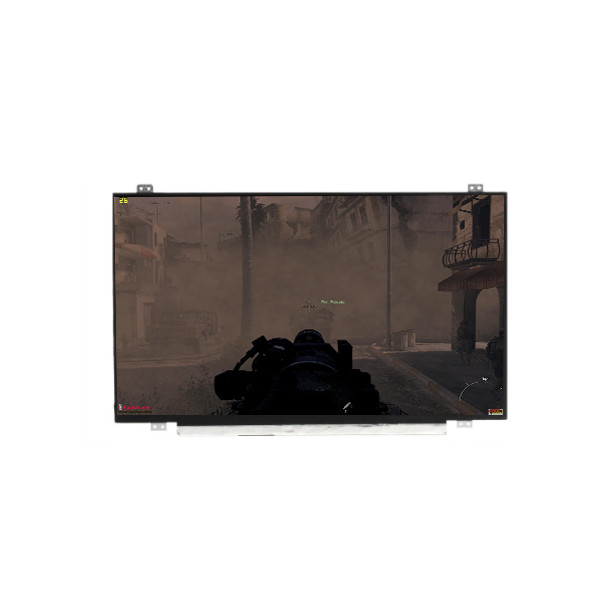

B133HAN04.2 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B133HAN04.2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B133HAN04.2 | Resolution: | 1920(RGB)×1080, FHD 166PPI |
---|---|---|---|
Active Area: | 293.76(W)×165.24(H) Mm | Luminance: | 300 Cd/m² (Typ.) |
Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode: | 27 (Typ.)(Tr+Tf) | Used For: | Laptop |
Signal Type: | EDP (2 Lanes), EDP1.3, Connector30 Pins | Power Supply: | 3.3V (Typ.) |
Product Description
B133HAN04.2 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL
B133HAN04.2 LCD Panel Product details :
Brand | AUO |
Model P/N | B133HAN04.2 |
Diagonal Size | 13.3" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 293.472(W)×165.078(H) mm |
Bezel Opening | - |
Outline (mm) | 299.872×186.92×2.2 (H×V×D) |
Treatment | Glare (Haze 0%) |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | 27 (Typ.)(Tr+Tf) ms |
Good View at | Symmetry |
Work Mode | AHVA, Normally Black, Transmissive |
Color Depth | 262K 72%NTSC |
Backlight | WLED, 30K hours, With LED Driver |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | eDP (2 Lanes), eDP1.3, Connector30 pins |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B133HAN04.2 13.3 inch 1920*1080 TFT-LCD SCREEN PANEL |
B133HAN04.2 LCD Panel Shipping and Package :
B133HAN04.2 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel B133HAN04.2 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order B133HAN04.2 ship?
A: The order are shipped within 1-2 working days after received the payment.
